Control Device Removal and Installation
›
Control Device Components
Control Device Components

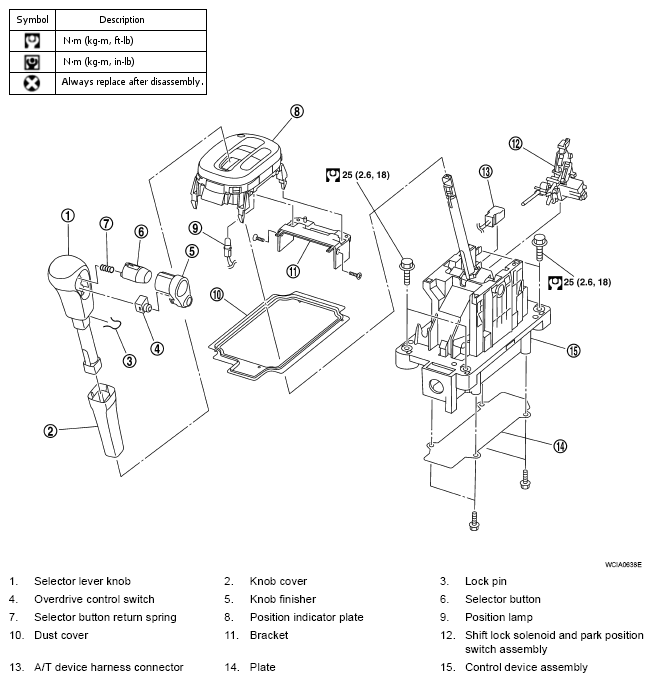

Fig 1: Exploded View Of Shift Control System Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
