Components of Control Device and Cable
Components of Control Device and Cable

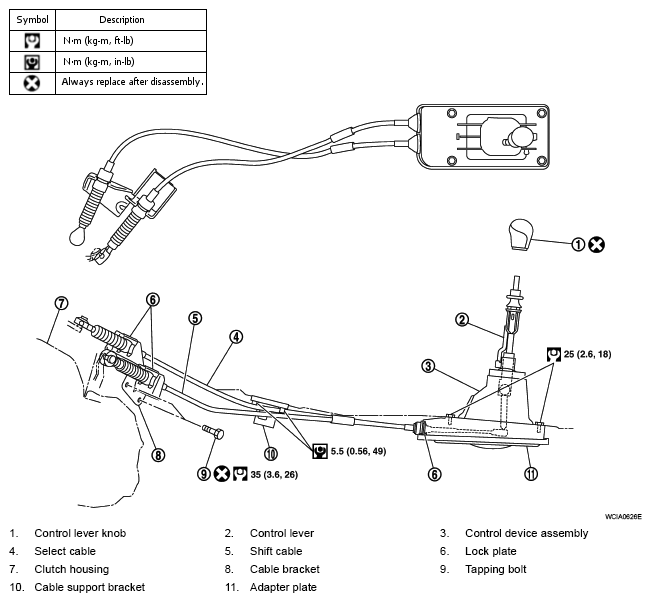

Fig 1: Replacement Components Of Control Device And Cable With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
