Back-Up Lamp Switch

Check continuity between terminals 1 and 2.

CONTINUITY CHART

Gear position	Continuity
Reverse	Yes
Except reverse	No

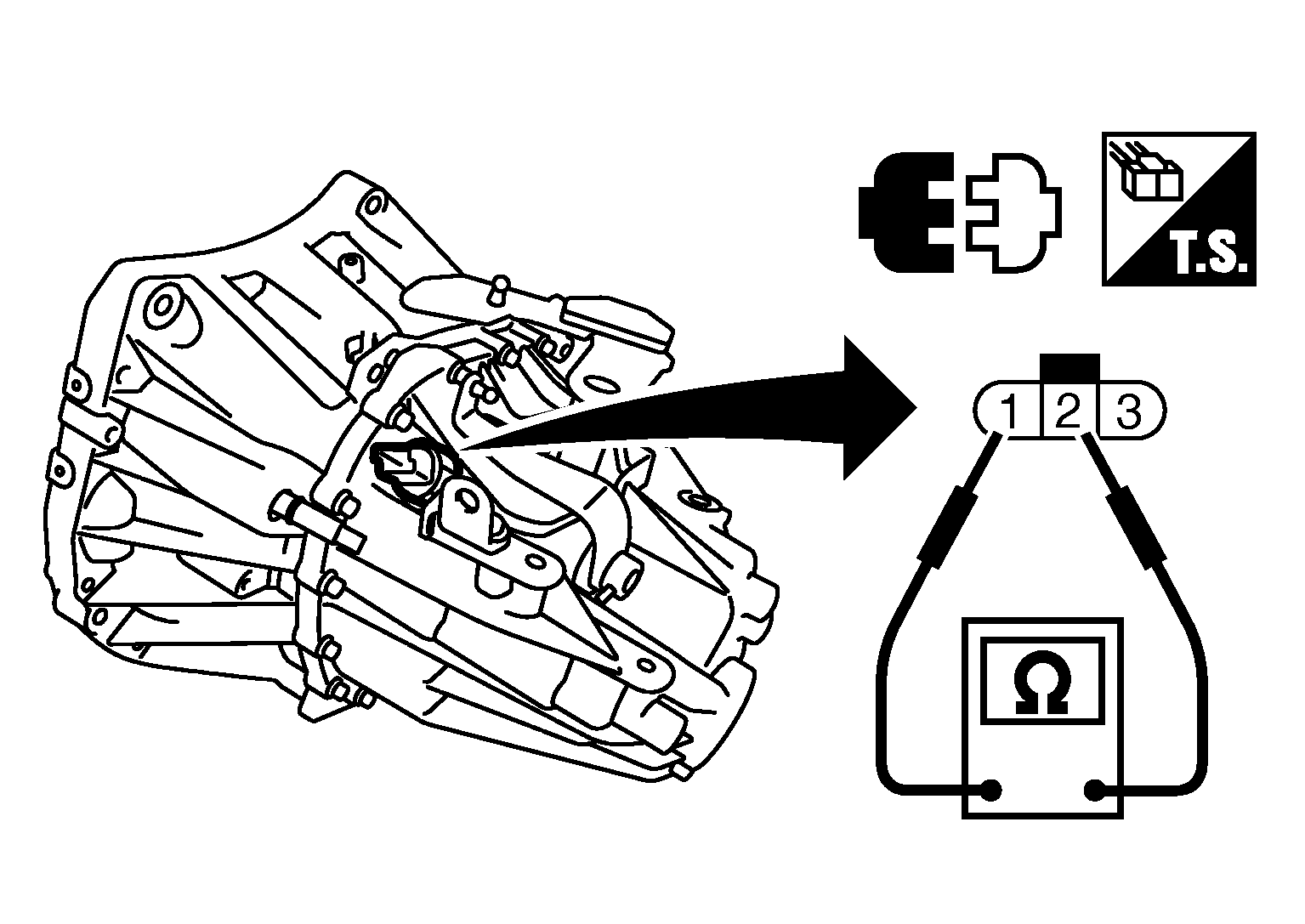

Fig 1: Checking Continuity Between Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.
