Final Drive Components
Final Drive Components

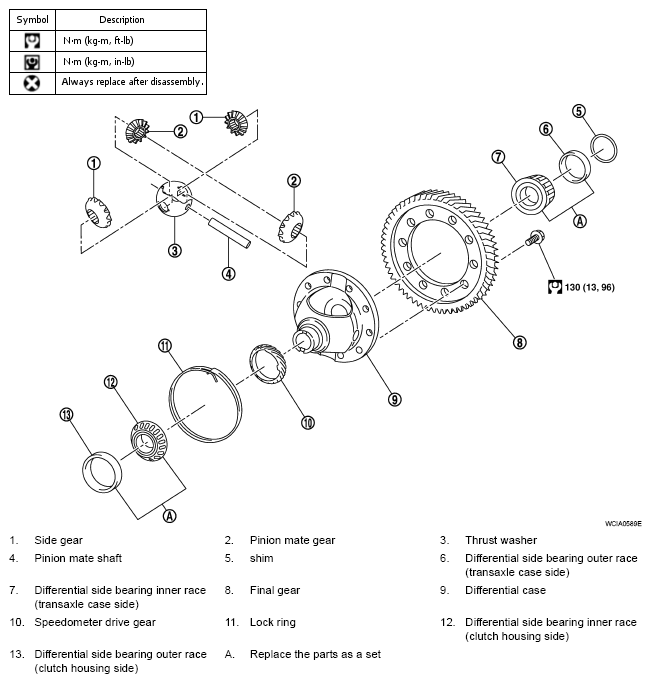

Fig 1: Final Drive Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
