Component Parts Location
Component Parts Location

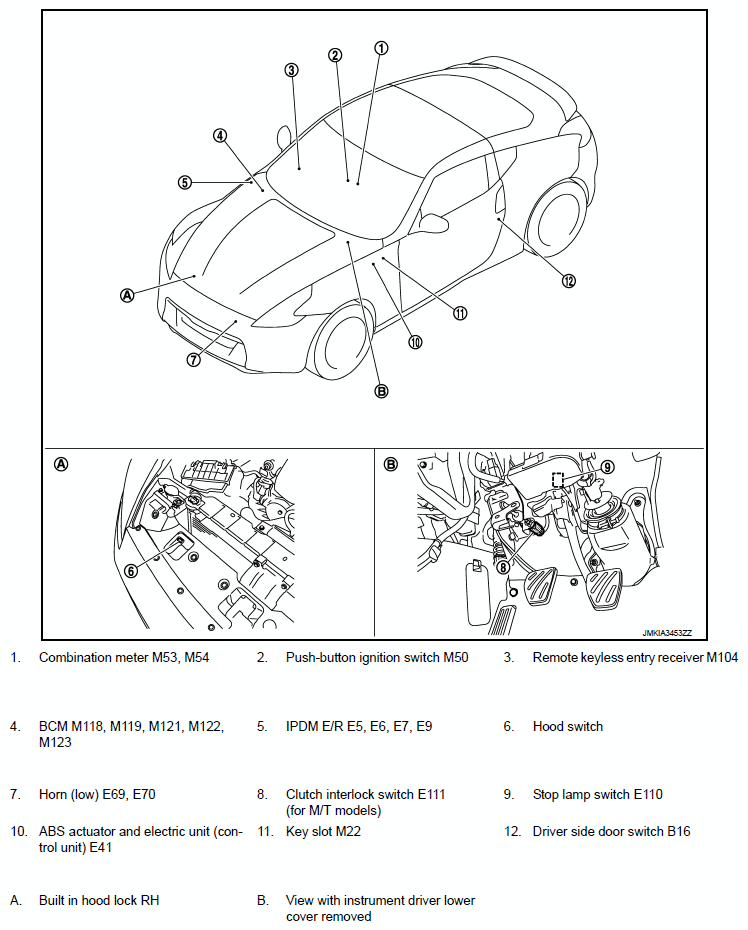

Fig 1: Intelligent Key System/Engine Start System Parts Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

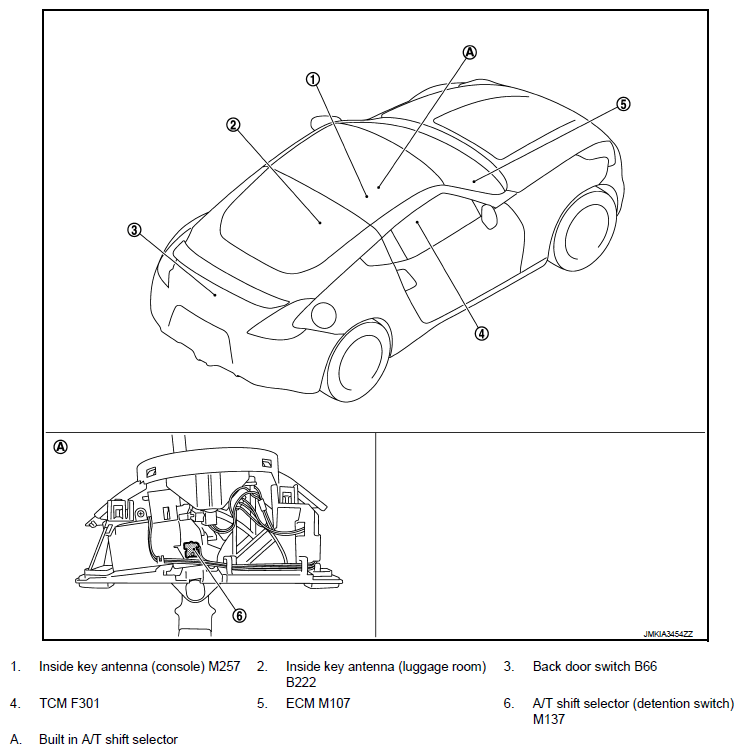

Fig 2: Intelligent Key System/Engine Start System Parts Location (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
