Electronic Controlled Engine Mount Line Drawing

WARNING: This page is about a different variant/trim than selected.

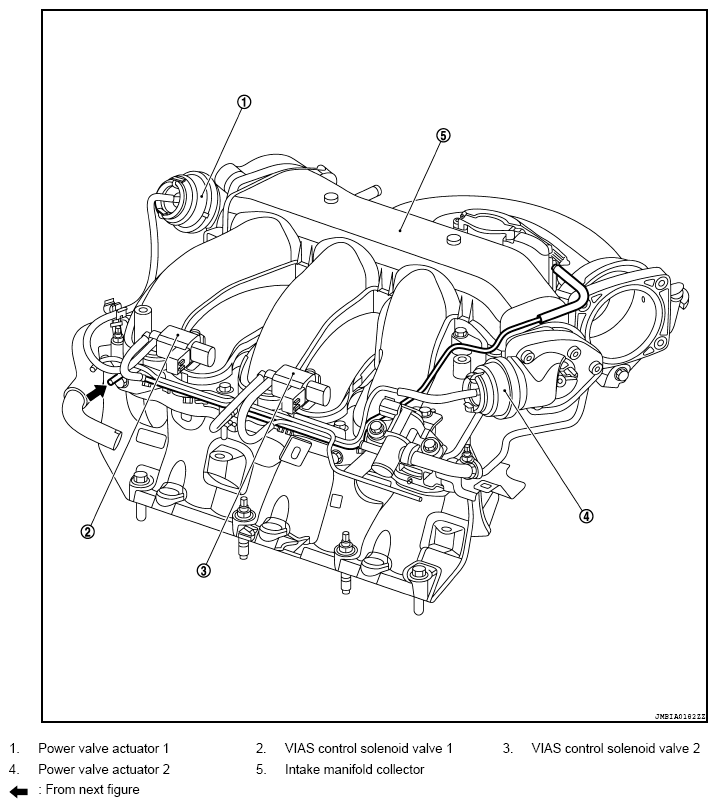

Fig 1: Identifying Power Valve Actuator, Intake Manifold Collector And VIAS Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

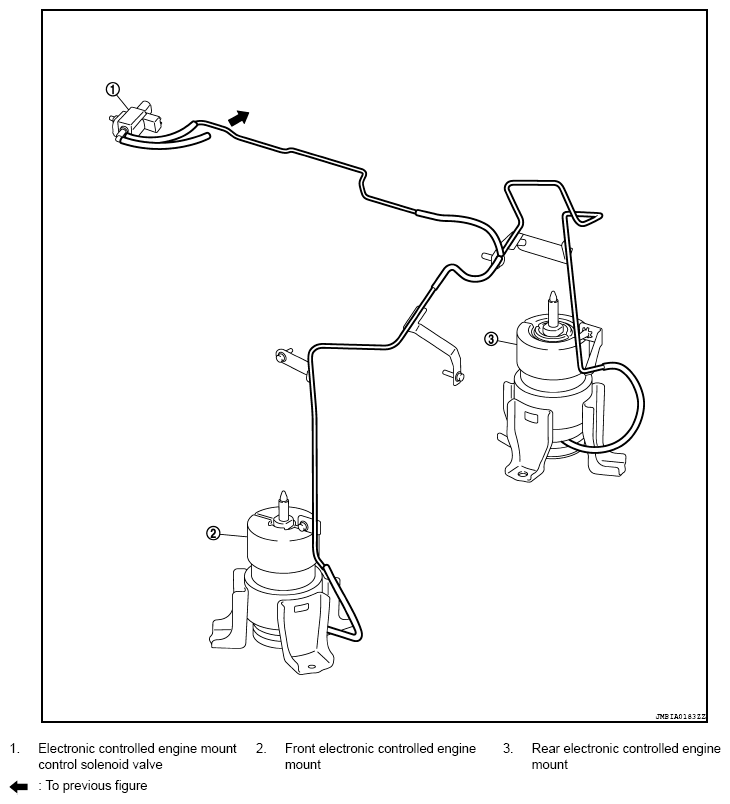

Fig 2: Identifying Electronic Controlled Engine Mount And Front Electronic Controlled Engine Mount

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose.
