Component Parts Location

WARNING: This page is about a different variant/trim than selected.

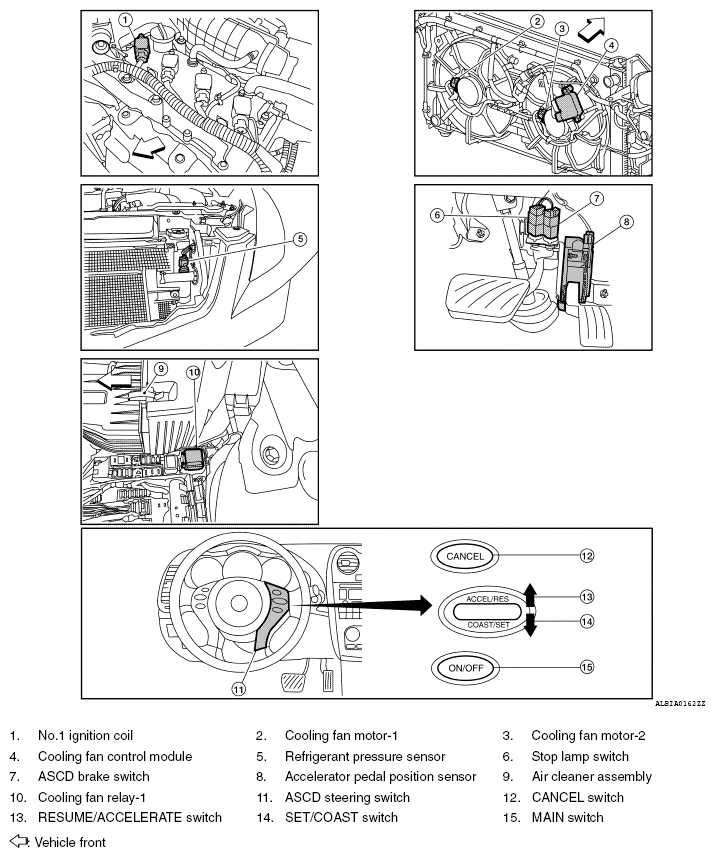

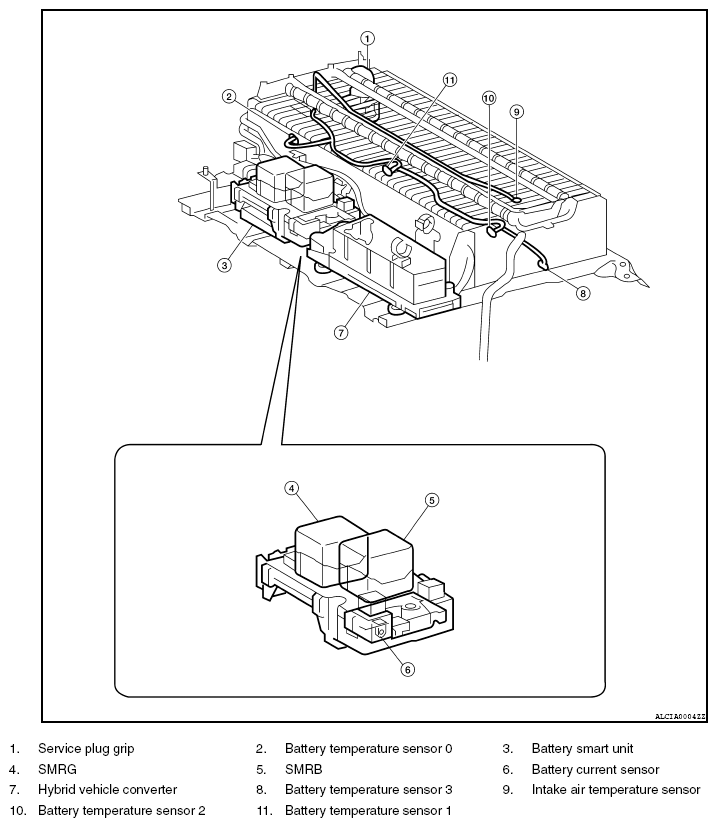

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

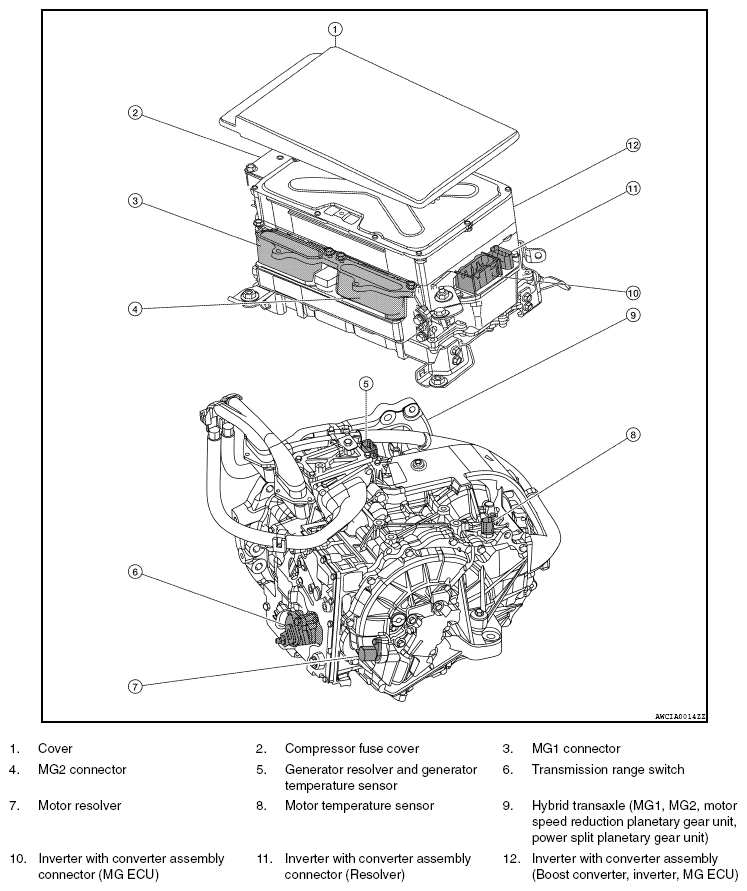

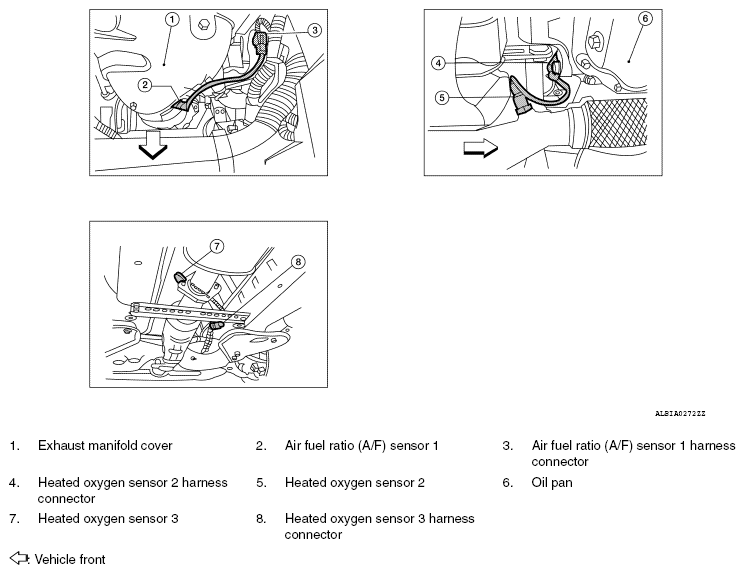

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

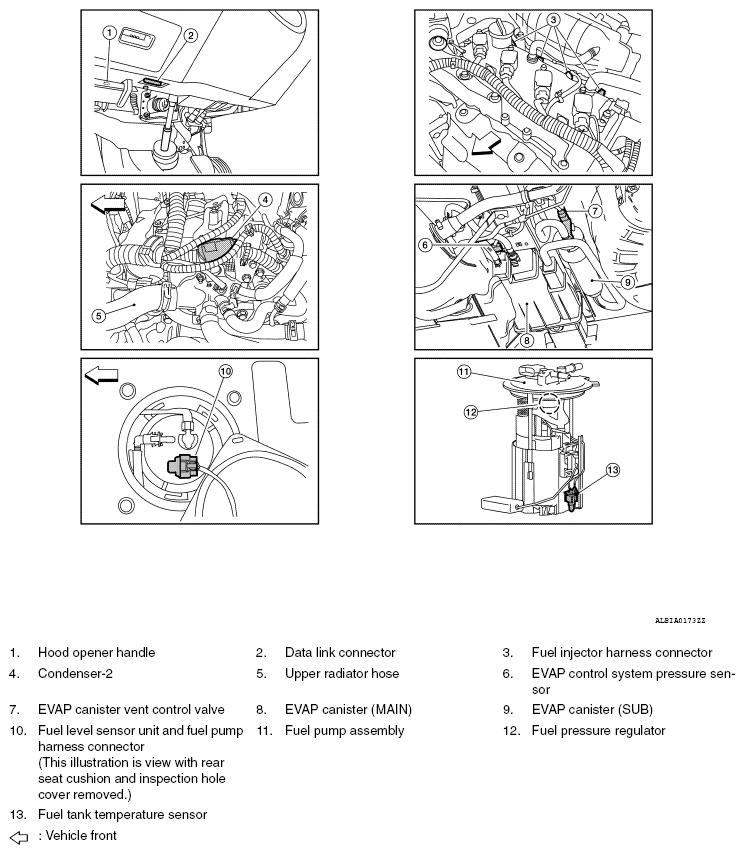

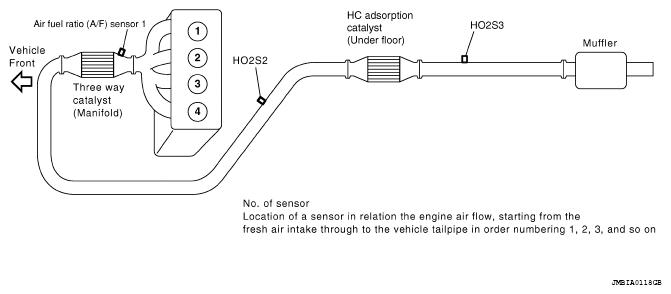

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

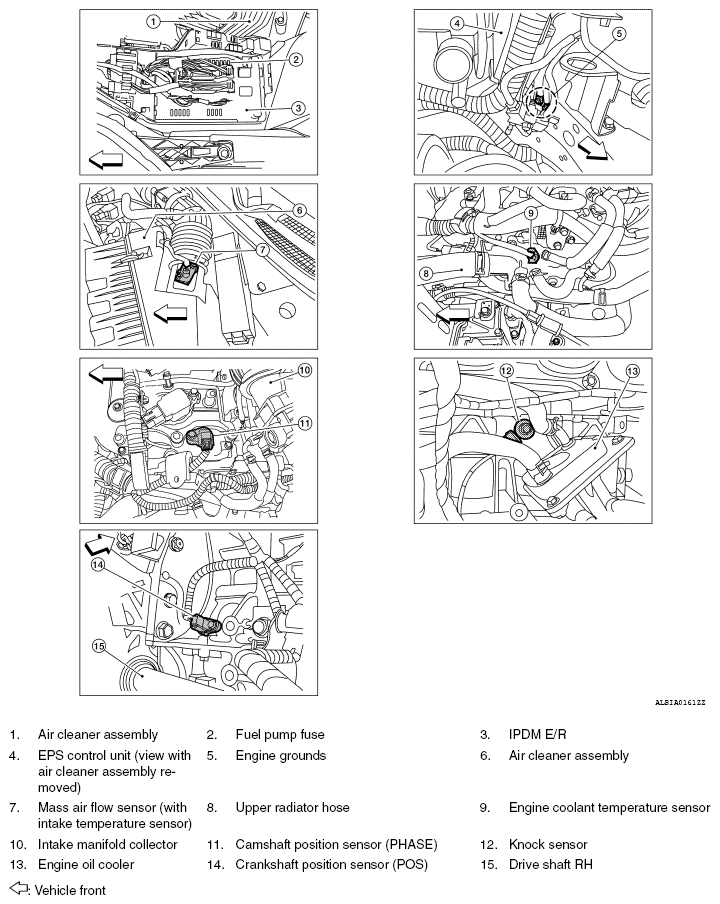

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

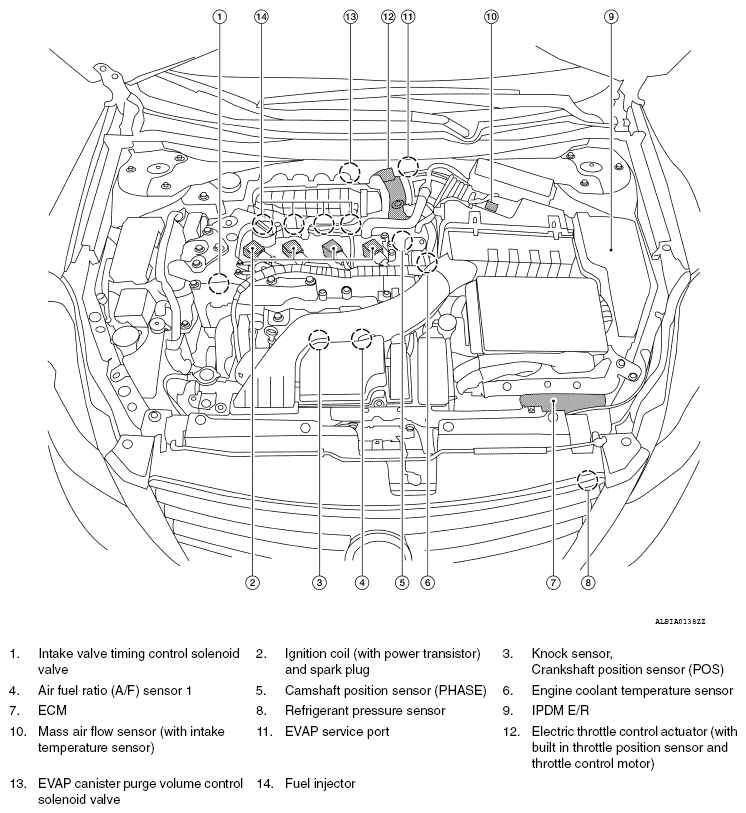

Fig 5: Identifying Automatic Speed Control Device Component Parts Location (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

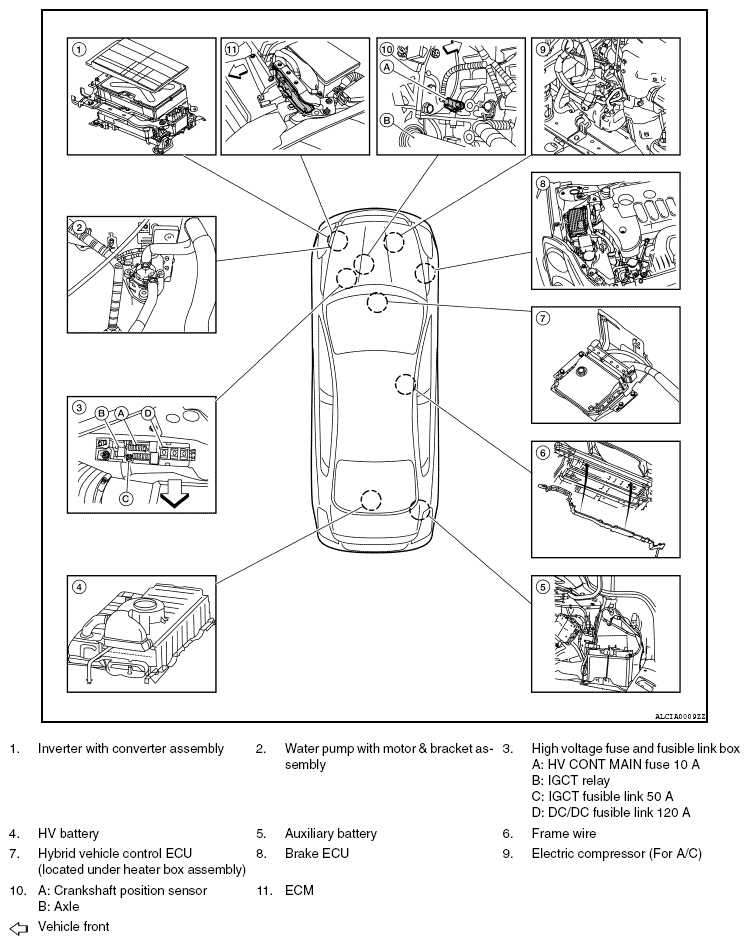

Fig 6: Identifying Automatic Speed Control Device Component Parts Location (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

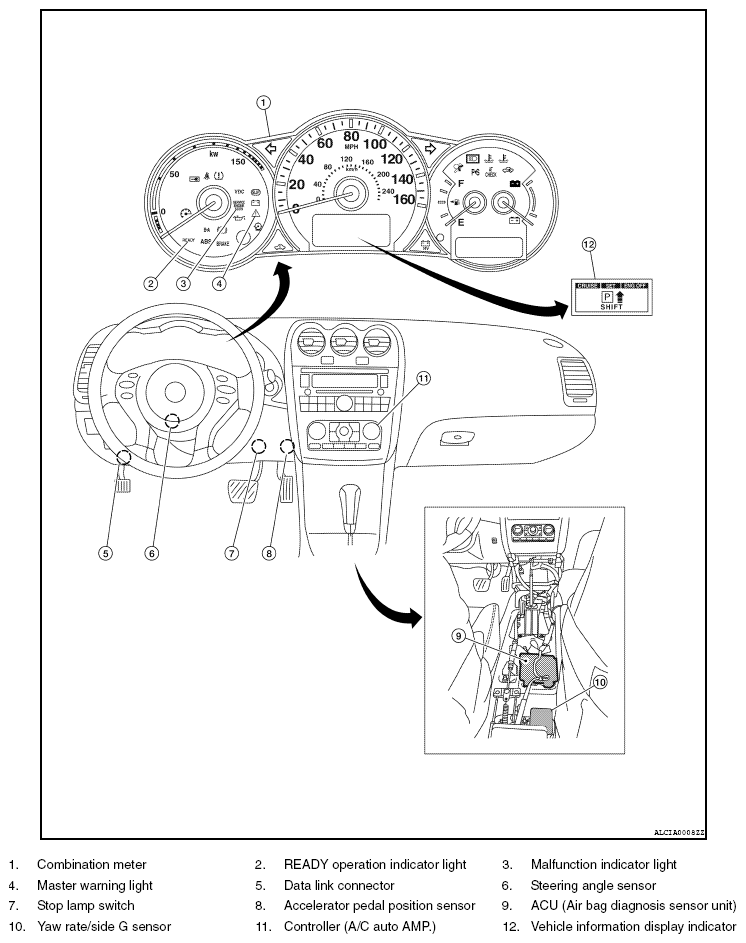

Fig 7: Identifying Automatic Speed Control Device Component Parts Location (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

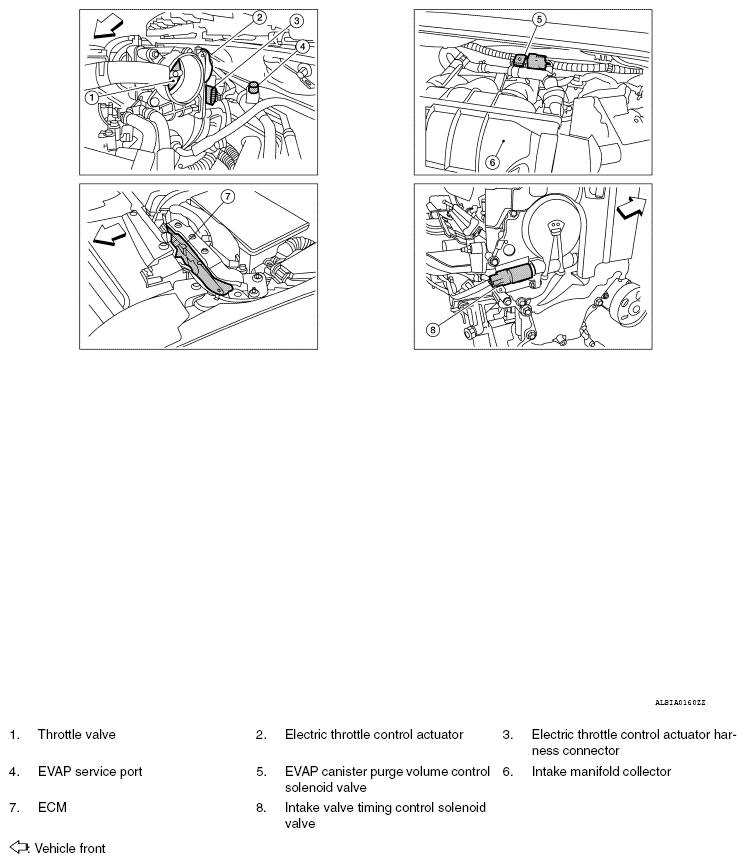

Fig 8: Identifying Automatic Speed Control Device Component Parts Location (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Automatic Speed Control Device Component Parts Location (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Automatic Speed Control Device Component Parts Location (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Automatic Speed Control Device Component Parts Location (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
