IPDM E/R Relays

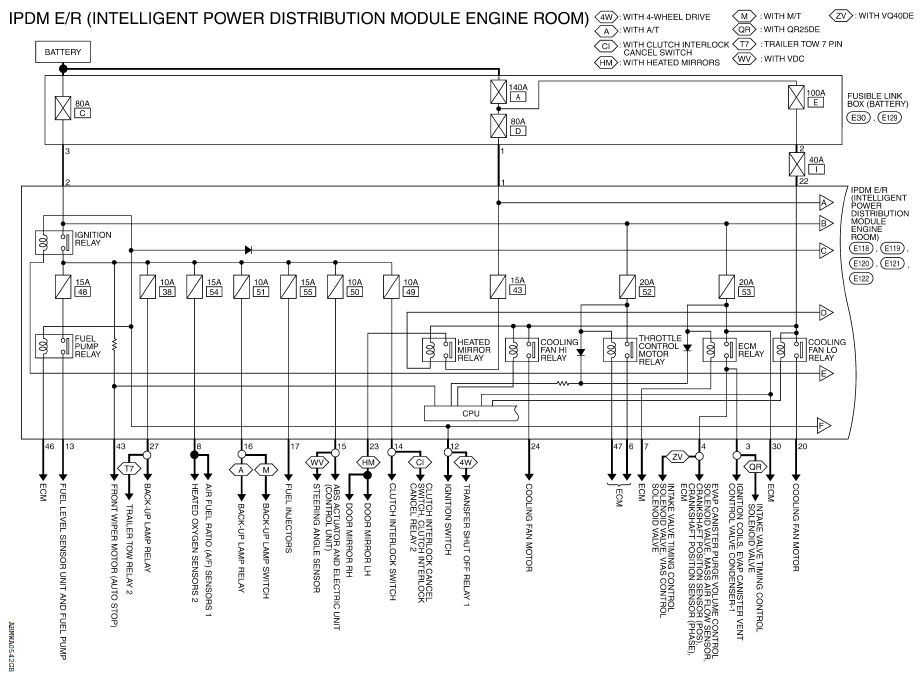

IPDM E/R RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Ignition Relay |
| Fuel Pump Relay |
| Heated Mirror Relay |
| Cooloing Fan High Relay |
| Throttle Control Motor Relay |
| ECM Relay |
| Cooling Fan Low Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|

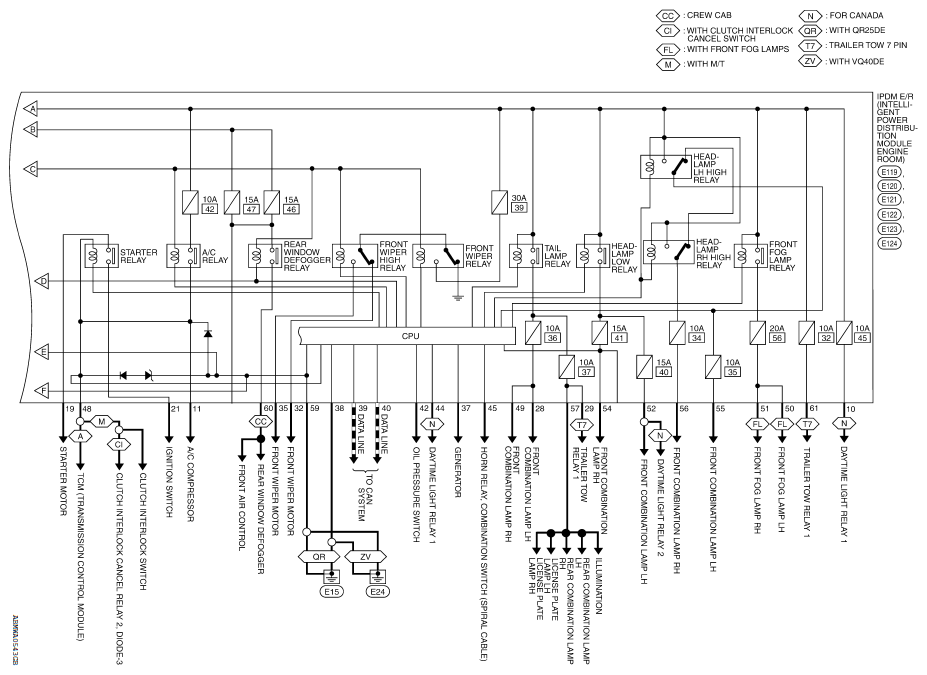

IPDM E/R RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Front Fog Lamp Relay |
| Headlamp LH High Relay |
| Headlamp Low Relay |
| Tail Lamp Relay |
| Front Wiper Relay |
| A/C Relay |
| Starter Relay |
| Front Wiper High Relay |
| Rear Window Defogger Relay |
| Headlamp RH High Relay |
|
CAUTION:
IPDM E/R Integrated Relays Cannot Be Removed.
|
