Engine Control System - Component Testing (Qr25DE)
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Matrix Chart
›
System - Basic Engine Control System
System - Basic Engine Control System

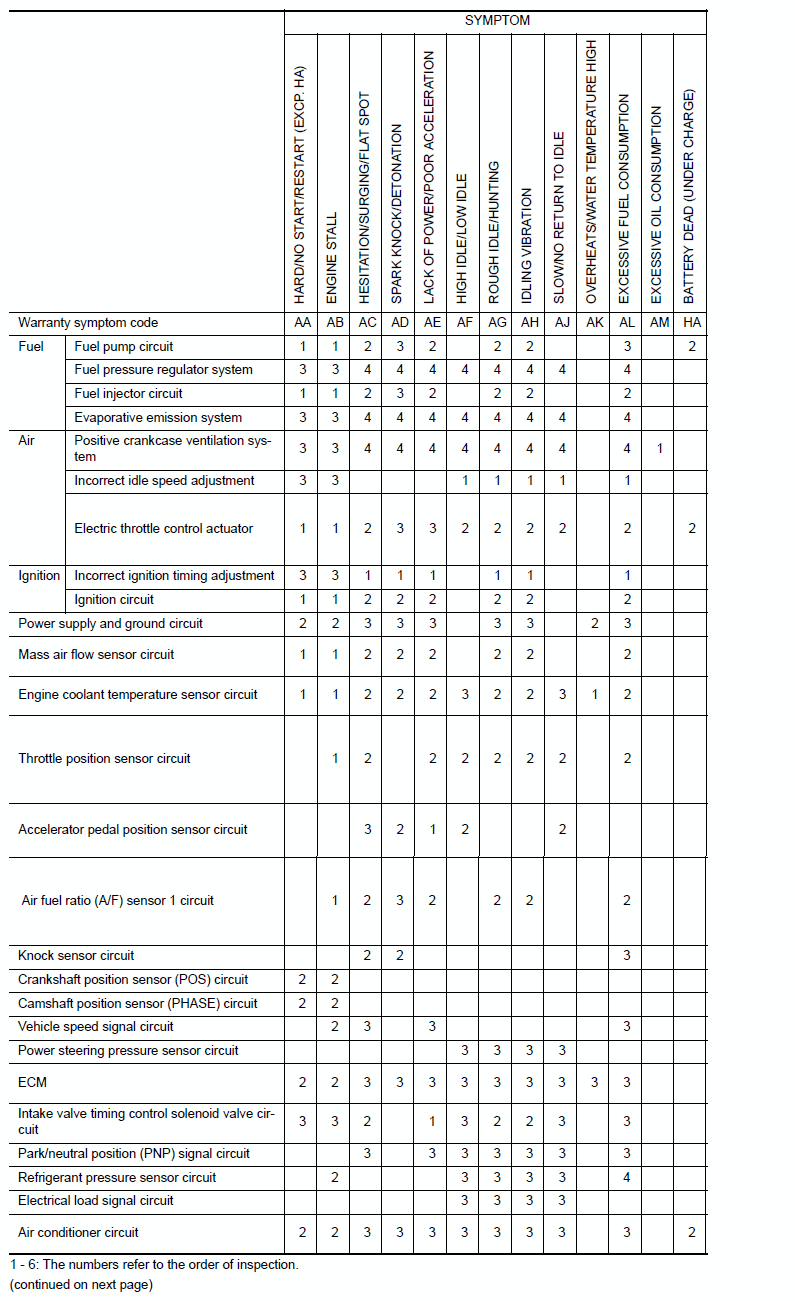

Fig 1: Symptom Matrix Chart - Basic Engine Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
