Component Parts Location

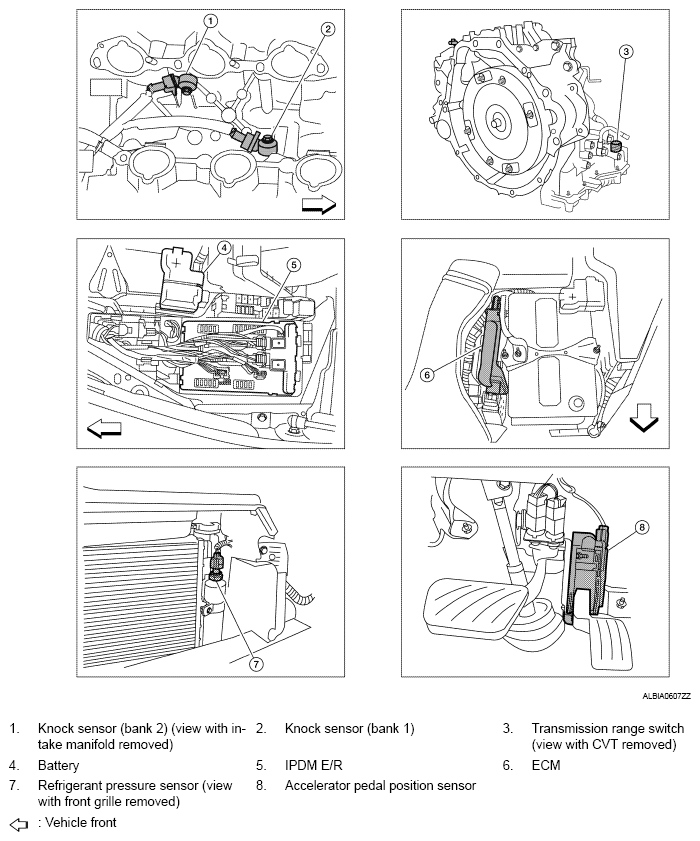

Fig 1: Identifying Variable Induction Air System Component Parts Location (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

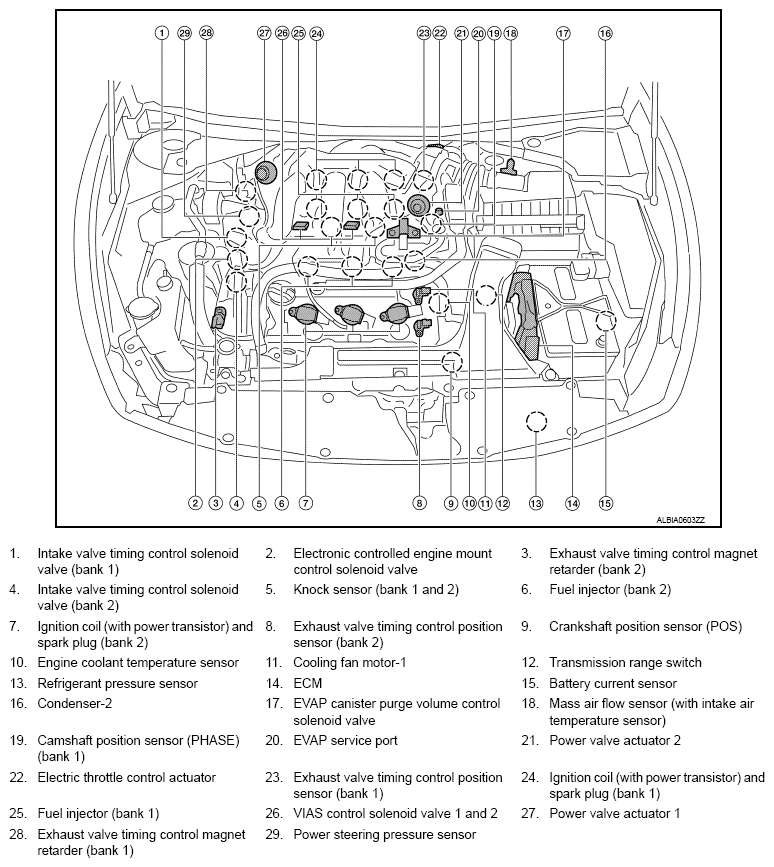

Fig 2: Identifying Variable Induction Air System Component Parts Location (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

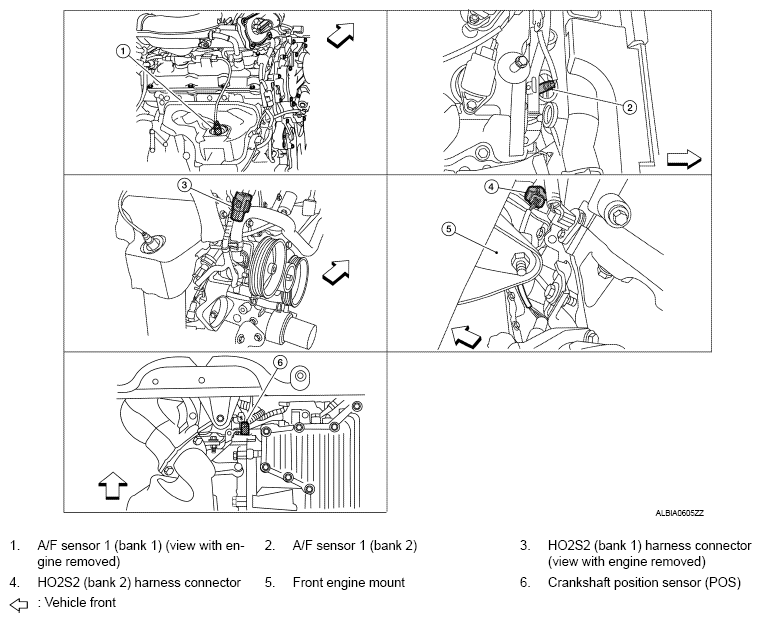

Fig 3: Identifying Variable Induction Air System Component Parts Location (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

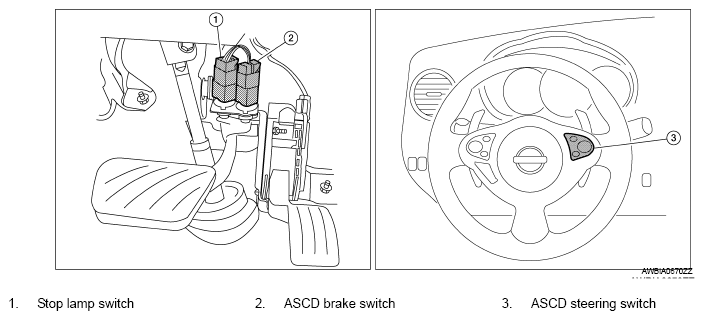

Fig 4: Identifying Variable Induction Air System Component Parts Location (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

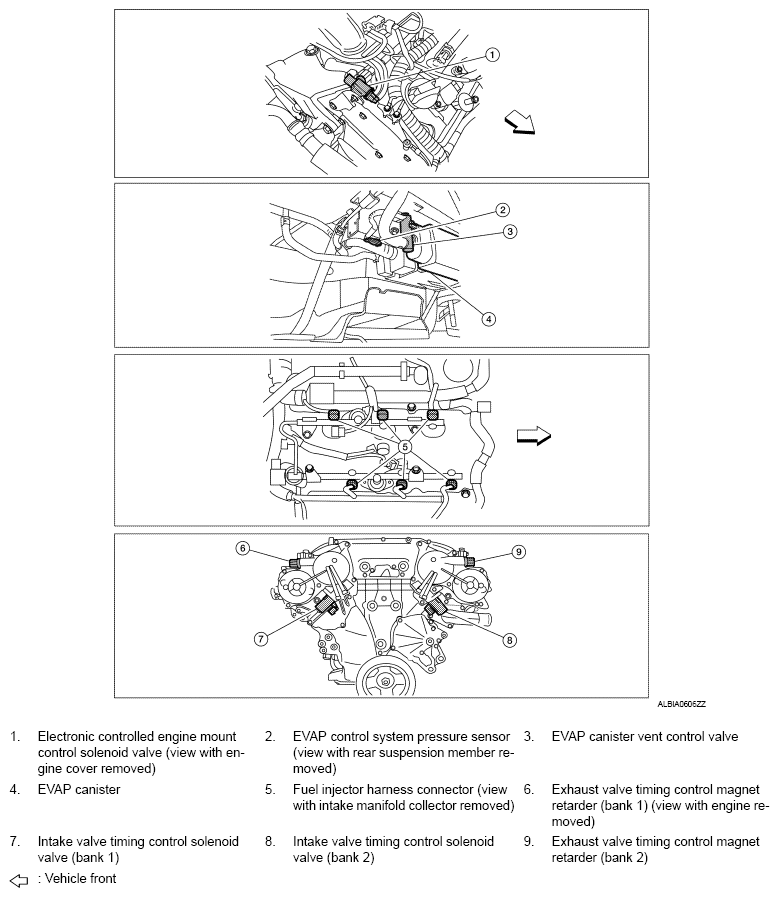

Fig 5: Identifying Variable Induction Air System Component Parts Location (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

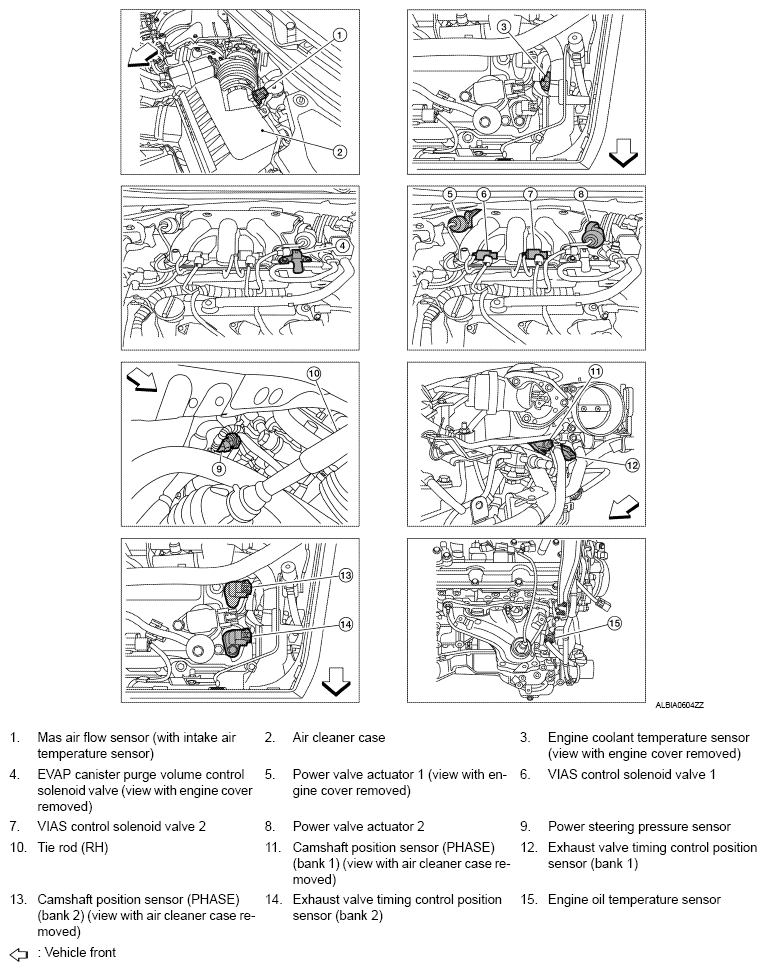

Fig 6: Identifying Variable Induction Air System Component Parts Location (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Variable Induction Air System Component Parts Location (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
