Power Window Control System
›
Function Diagnosis
›
Power Window System
›
Component Parts Location
Component Parts Location

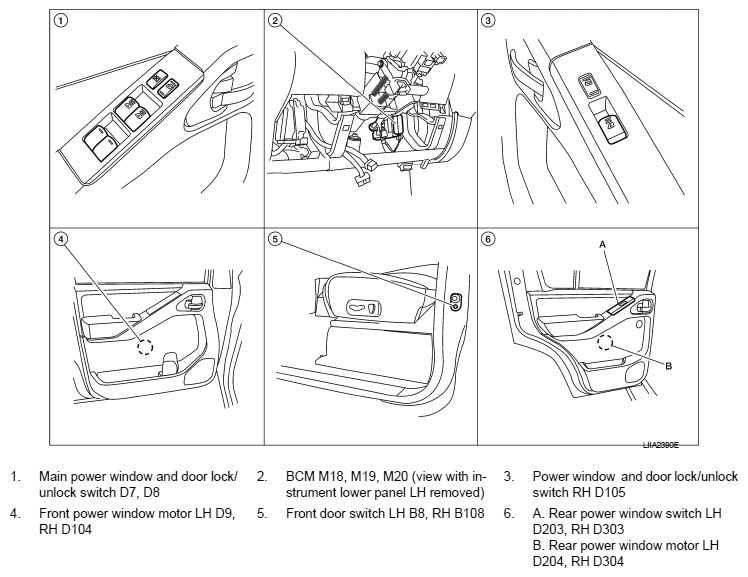

Fig 1: Identifying Front Window Anti-Pinch System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
