Accelerator Control System
›
Component
Accelerator Control System: Component

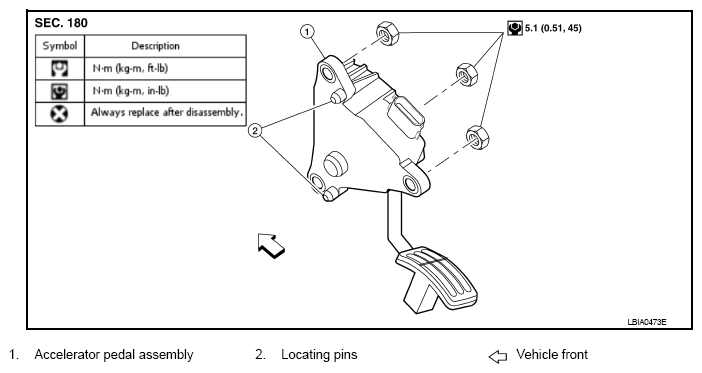

Fig 1: Accelerator Control System Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
