Exploded View (QR25DE Battery Tray)
Exploded View (QR25DE Battery Tray)

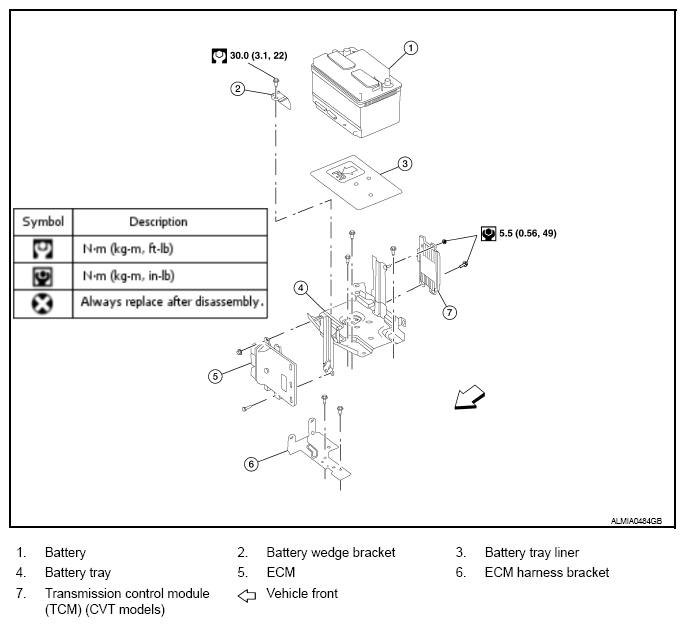

Fig 1: Exploded View Of Battery Tray With Torque Specifications (QR25DE)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
