Engine Assembly: Component

WARNING: This page is about a different variant/trim than selected.

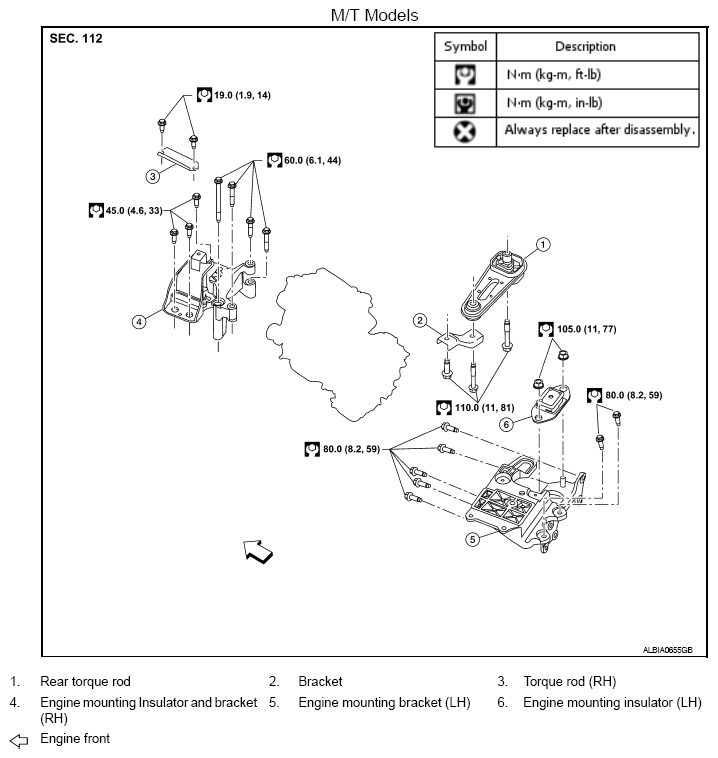

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 2)
G06549737Courtesy of NISSAN MOTOR CO., U.S.A.

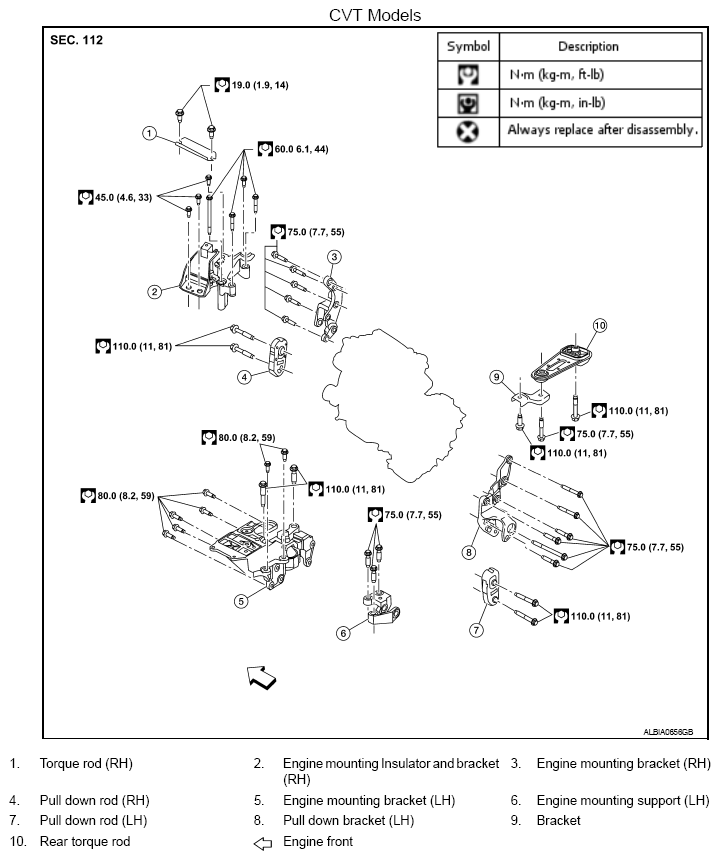

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 2)
G06549738Courtesy of NISSAN MOTOR CO., U.S.A.
