Power Steering Gear
›
Exploded View
Exploded View

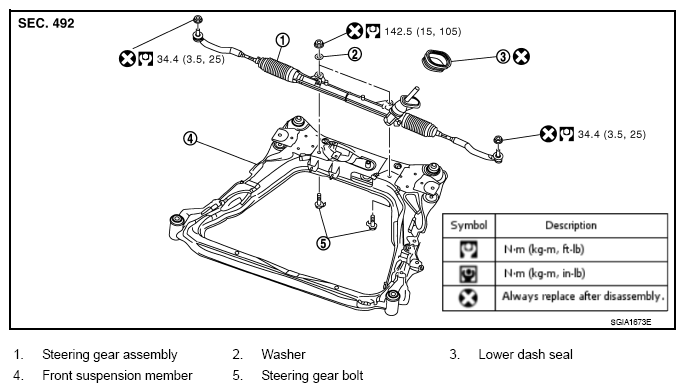

Fig 1: Power Steering Gear Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

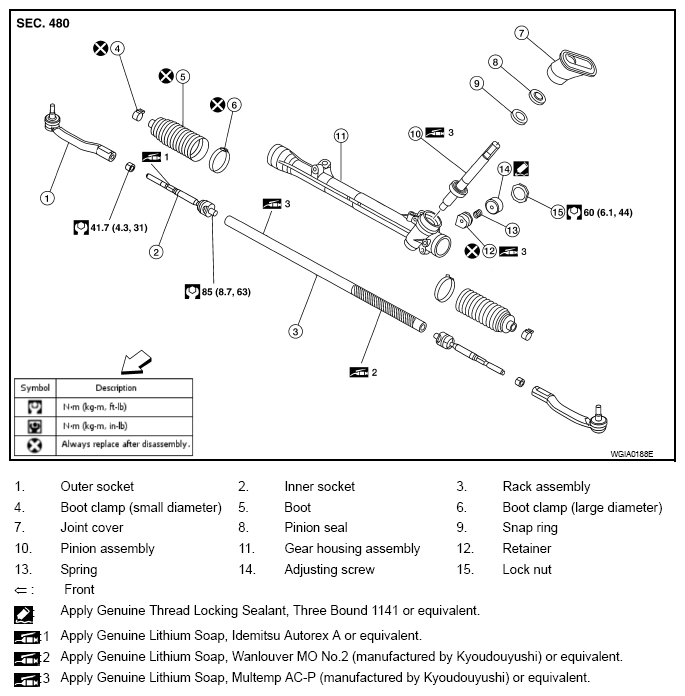

Fig 1: Exploded View Of Power Steering Gear Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
