CVT Shift Lock System
›
Shift Lock System Electrical Parts Location
Shift Lock System Electrical Parts Location

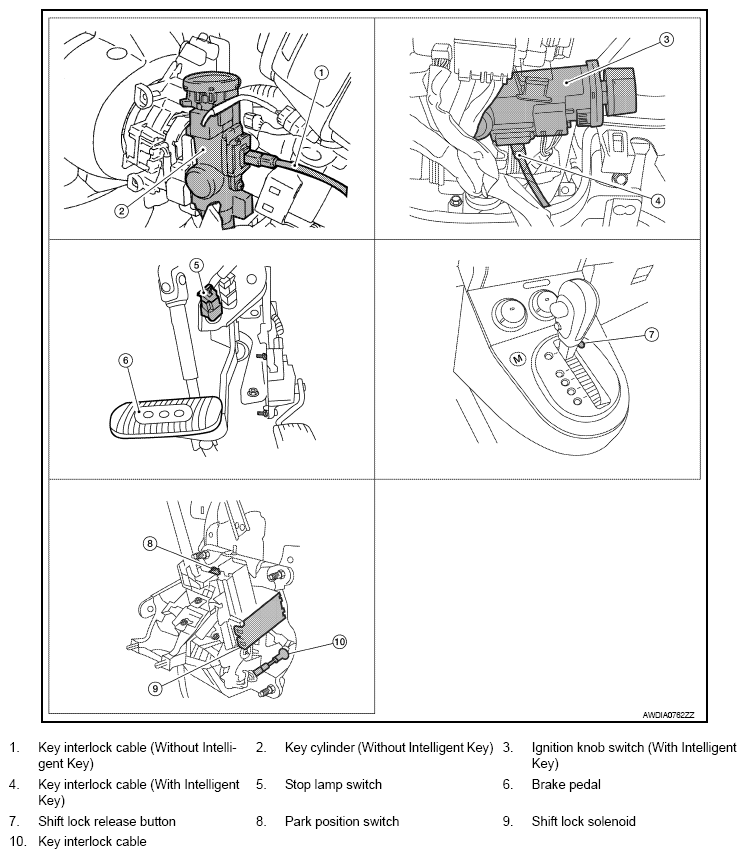

Fig 1: Identifying Shift Lock System Electrical Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
