Key Interlock Cable
›
Removal and Installation
›
Components
Removal and Installation: Components

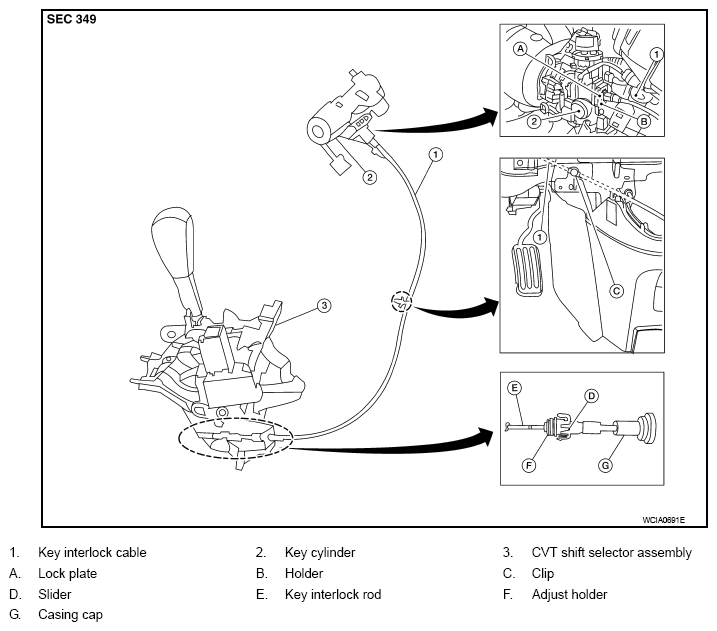

Fig 1: Identifying Key Interlock Cable Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
