Transmission Range Switch: Components

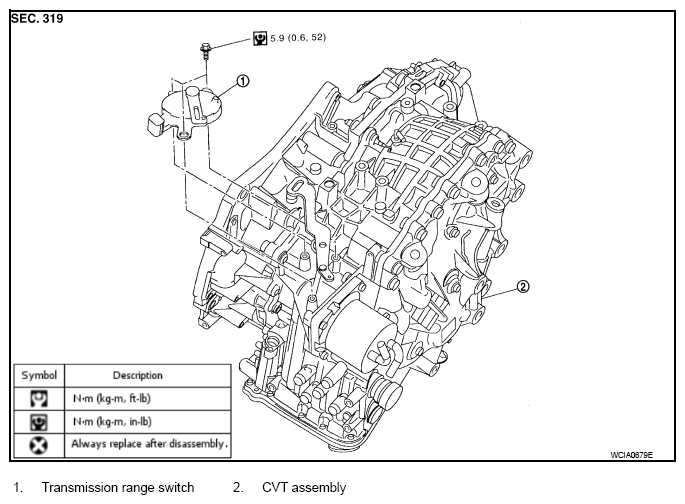

Fig 1: Transmission Range Switch Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

• Align transmission range switch position when installing.
• After installation of transmission range switch, check the continuity of transmission range switch. Refer to "ADJUSTMENT OF TRANSMISSION RANGE SWITCH ".
• After installation is complete, adjust and check CVT position. Refer to "ADJUSTMENT OF CVT POSITION ", "CHECKING OF CVT POSITION ".
