Overdrive Control Switch
›
Wiring Diagram - CVT - ODSW
›
Notes
Wiring Diagram - CVT - ODSW: Notes

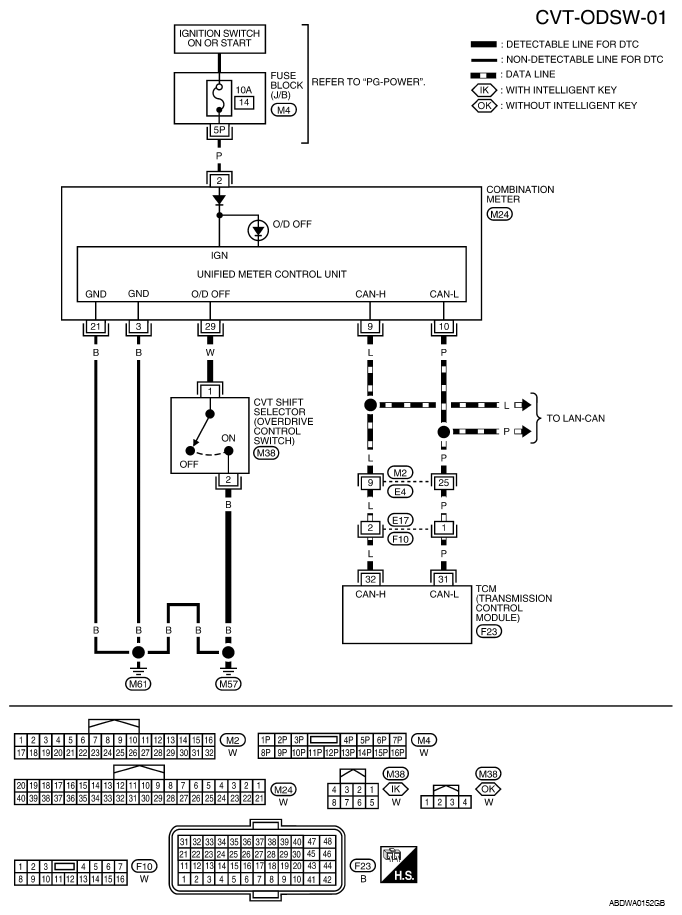

Fig 1: Wiring Diagram - CVT-ODSW-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
