Removal and Installation: Components

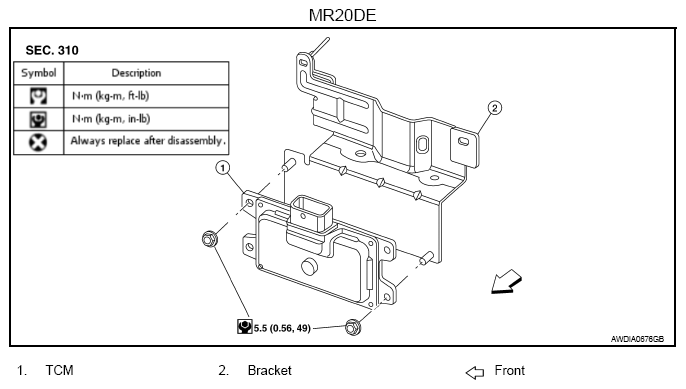

Fig 1: TCM Replacement Components With Torque Specifications - MR20DE

Courtesy of NISSAN MOTOR CO., U.S.A.

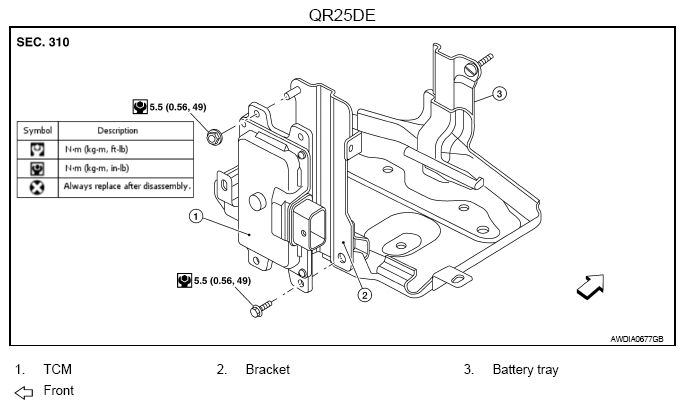

Fig 1: TCM Replacement Components With Torque Specifications - QR25DE

Courtesy of NISSAN MOTOR CO., U.S.A.
