Final Drive: Components

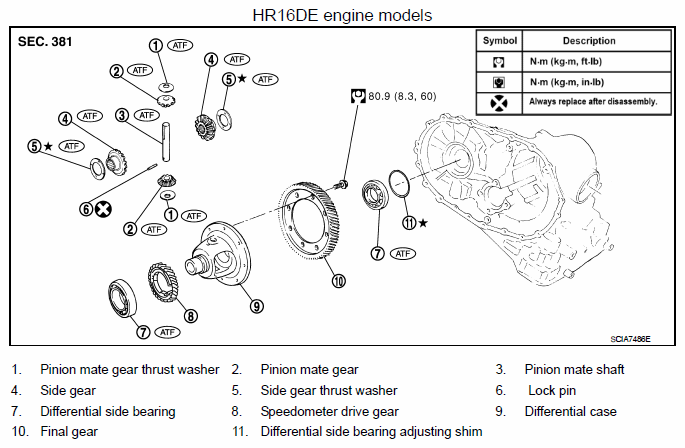

Fig 1: Identifying Final Drive Components (HR16DE Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

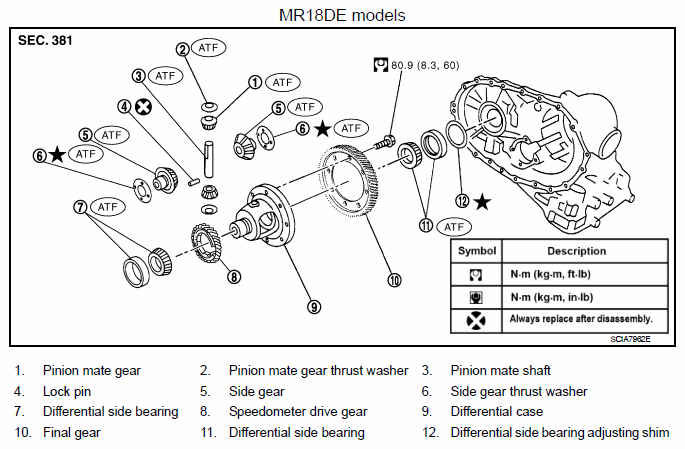

Fig 2: Identifying Final Drive Components (MR18DE Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
