Engine Control System - 370Z - Diagnostics Introduction & DTC Index
›
Basic Inspection
›
Diagnosis And Repair Workflow
›
Work Flow
›
Overall Sequence
Overall Sequence

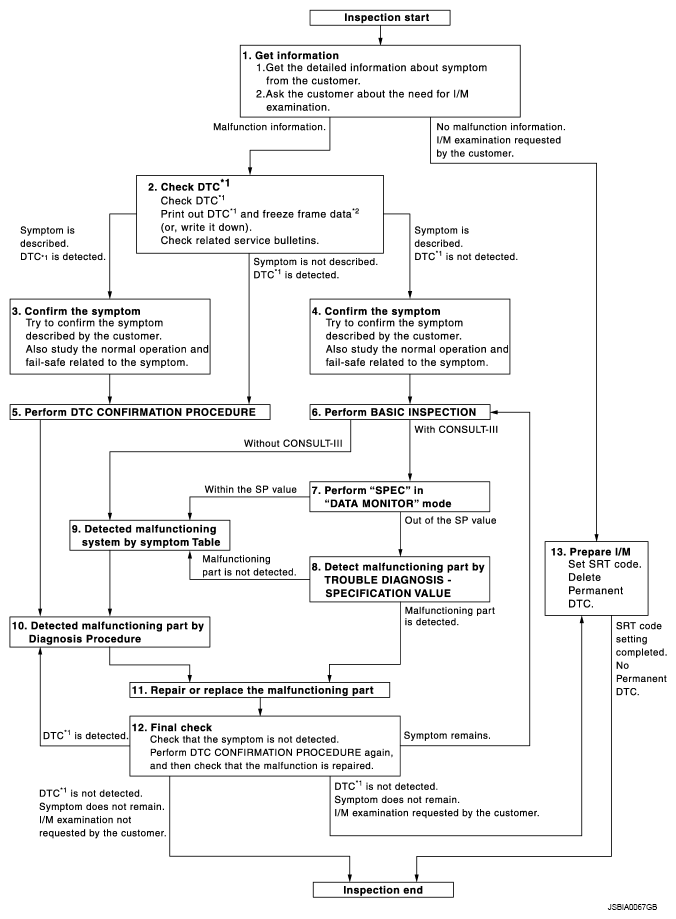

Fig 1: Diagnosis And Repair Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.
Courtesy of NISSAN MOTOR CO., U.S.A.
