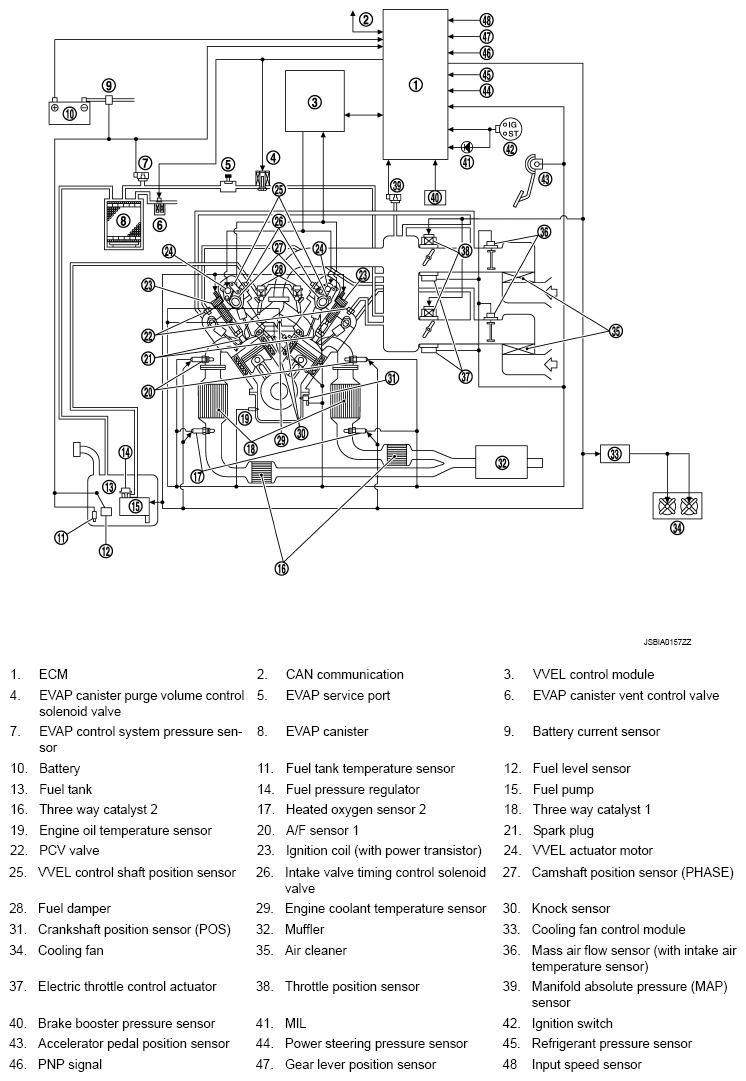

Home › Nissan-Datsun › 2011 › 370Z Base, 2D Convertible, Standard › Repair and Diagnosis › Engine Performance › System › Engine Control System - 370Z - Diagnostics Introduction & DTC Index › System Description › Engine Control System › System Diagram
