Power Control System (Except Hybrid)
›
Power Distribution System
›
Ecu Diagnosis Information
›
IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Reference Value
›
Terminal Layout
Terminal Layout

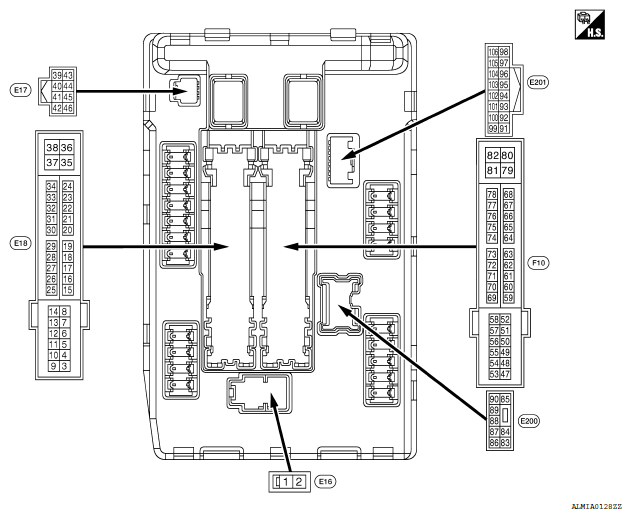

Fig 1: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Terminal Layout
