Section 33 (Power Control System (Hybrid))
›
IPDM E/R
›
System Description
›
Relay Control System
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

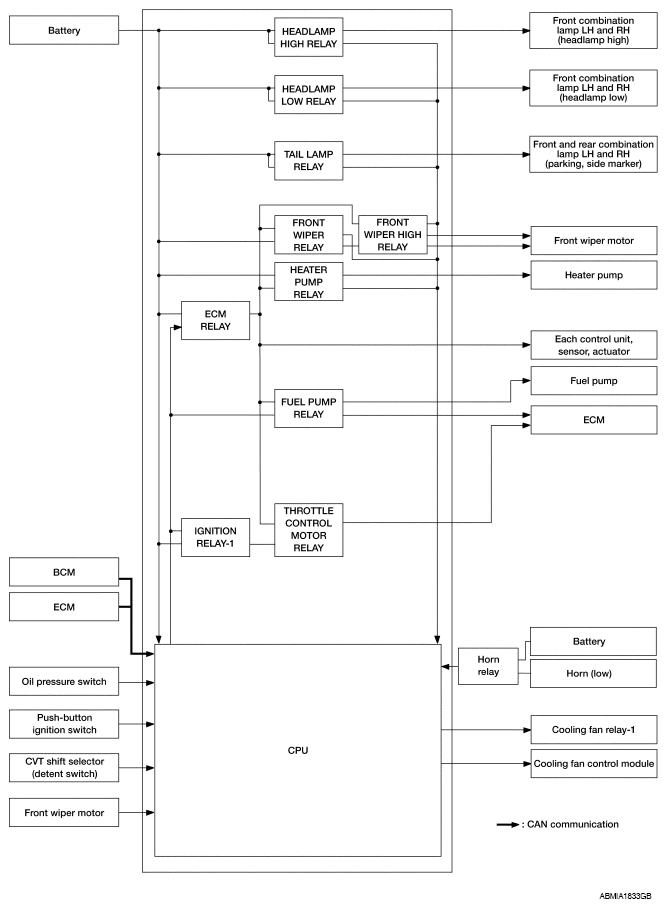

Fig 1: Relay Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
