System Diagram

WARNING: This page is about a different variant/trim than selected.

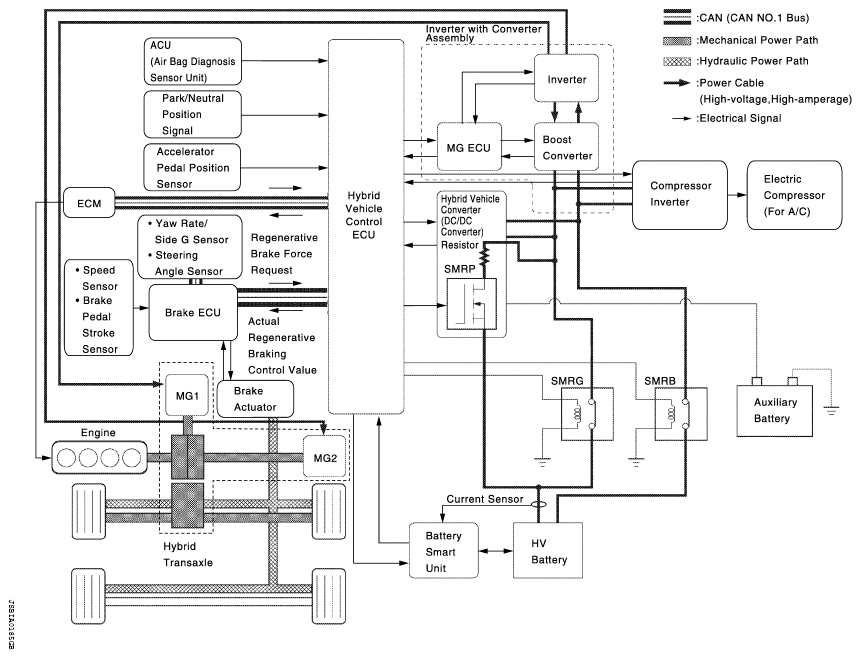

Fig 1: Hybrid Control System Diagram
G06570420Courtesy of NISSAN MOTOR CO.
