Section 72 (Hybrid Control System - Component Testing)
›
Unit Removal And Installation
›
Sub Radiator
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

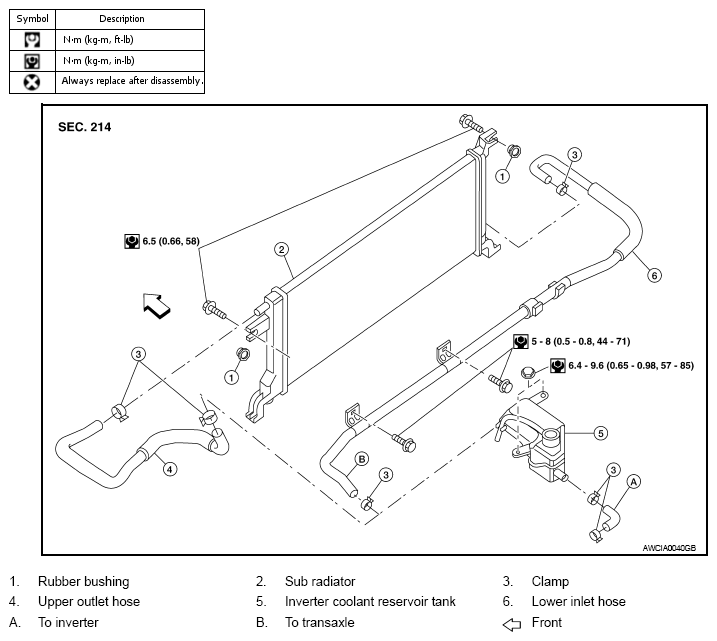

Fig 1: Exploded View Of Sub Radiator With Torque Specification
Courtesy of NISSAN MOTOR CO.
