Section 80 (Engine Control System - Component Testing (VQ35DE))
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Basic Engine Control System
System - Basic Engine Control System
WARNING:
This page is about a different variant/trim than selected.

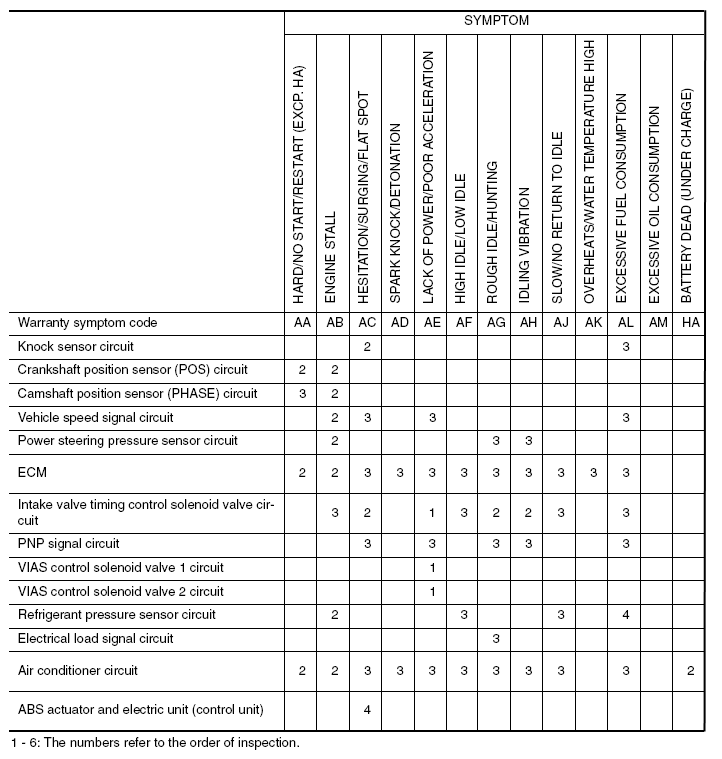

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

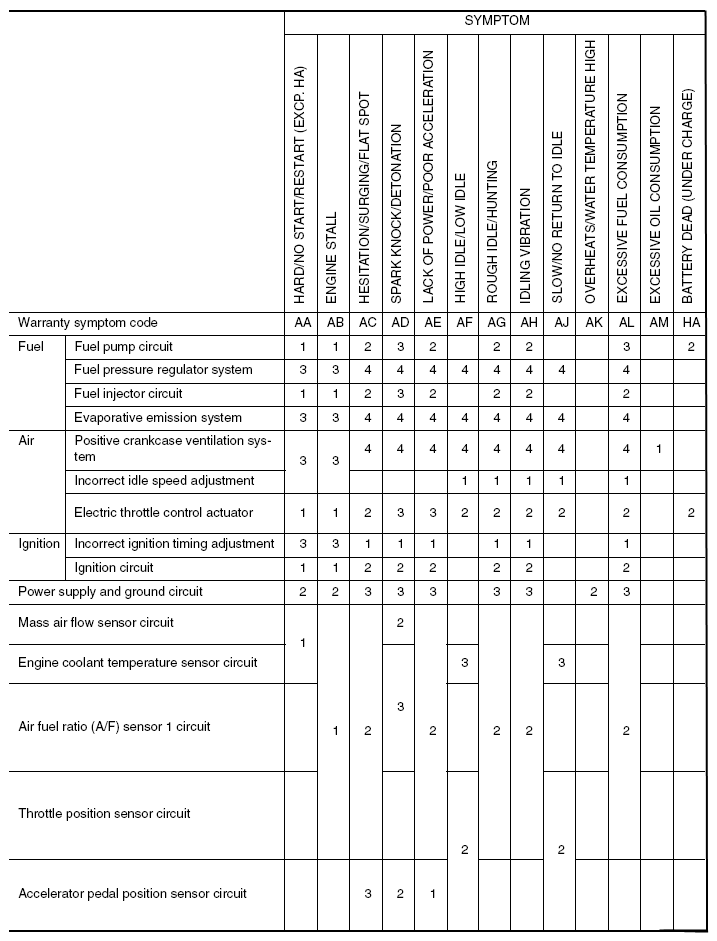

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
