Component Function Check

With CONSULT-III

1. Start engine and warm it up to the normal operating temperature.
2. Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode with CONSULT-III.
3. Turn VIAS control solenoid valve 1 ON and OFF, and check that power valve actuator 1 rod moves.

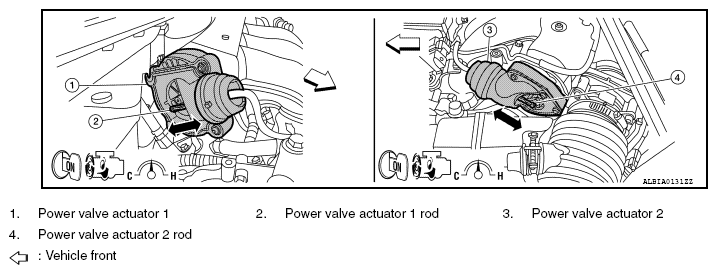

   Fig 1: Checking Power Valve Actuator 1 Rod Moves

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-III

1. Start engine and warm it up to the normal operating temperature.
2. Rev engine quickly up to approximately 5, 000 RPM.
3. Check that power valve actuator 1 rod moves.
   Fig 2: Checking Power Valve Actuator 1 Rod Moves

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is the inspection result normal?

   YES: GO TO 2.

   NO: "DIAGNOSIS PROCEDURE ".

With CONSULT-III

1. Perform "VIAS S/V-2" in "ACTIVE TEST" mode with CONSULT-III.
2. Turn VIAS control solenoid valve 2 ON and OFF, and check that power valve actuator 2 rod moves.
   Fig 3: Checking Power Valve Actuator 2 Rod Moves

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-III

1. When revving engine up to 5, 000 RPM quickly.
2. Rev engine quickly up to approximately 5, 000 RPM.
3. Check that power valve actuator 2 rod moves.
   Fig 4: Checking Power Valve Actuator 2 Rod Moves

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: "DIAGNOSIS PROCEDURE ".
