Exploded View

CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM): DESCRIPTION ".

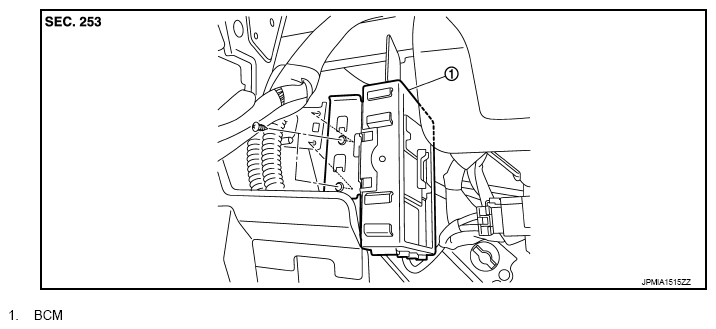

Fig 1: Identifying BCM (Body Control Module)

Courtesy of NISSAN MOTOR CO., U.S.A.
