Terminal Layout
Terminal Layout

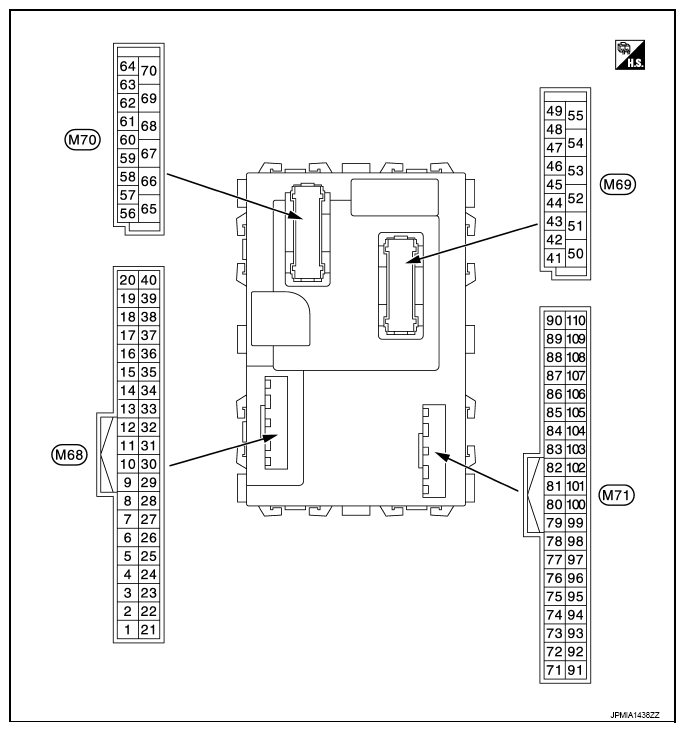

Fig 1: Identifying BCM Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Connector color
M68, M70: Black
M69, M71: White
Courtesy of NISSAN MOTOR CO., U.S.A.
