Terminal Layout

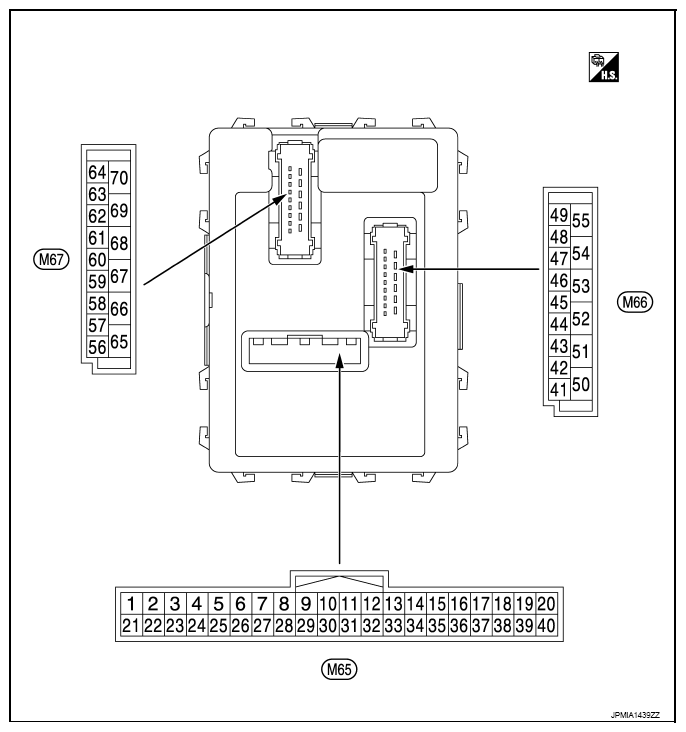

Fig 1: Identifying BCM Terminal Layout (Without Intelligent Key)
G07105797Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • M65, M66: White
  • M67: Black
