IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to No. 1 ignition coil (1) wire as shown in figure.

  Fig 1: Identifying Timing Light To No. 1 Ignition Coil Wire
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
  INSPECTION END

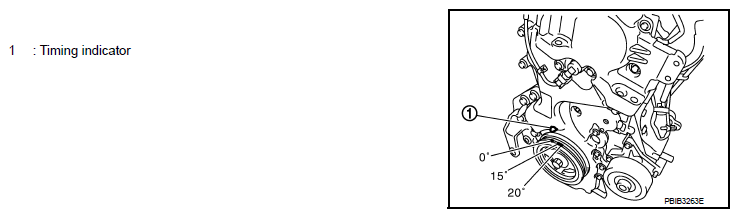

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN MOTOR CO., U.S.A.
