Exploded View

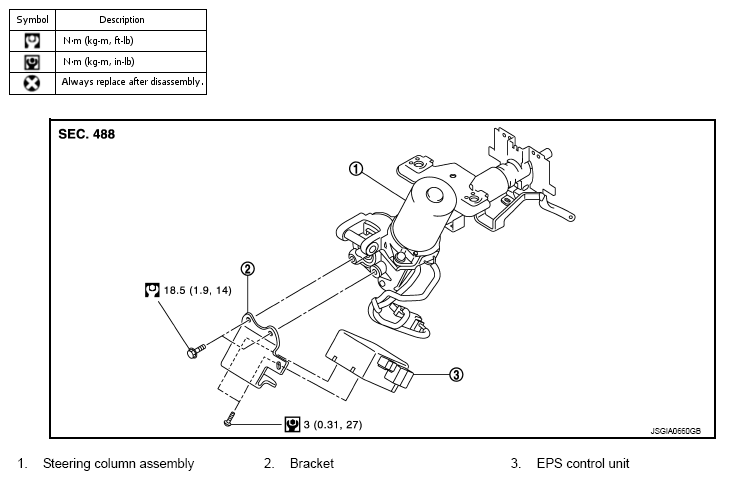

Fig 1: Exploded View Of Steering Column Assembly, Bracket & EPS Control Unit With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
