Nissan-Datsun
›
2011
›
Cube Krom
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Security Control System
›
[With Intelligent Key System]
›
Ecu Diagnosis Information
›
BCM (Body Control Module)
›
Reference Value
›
Terminal Layout
Terminal Layout

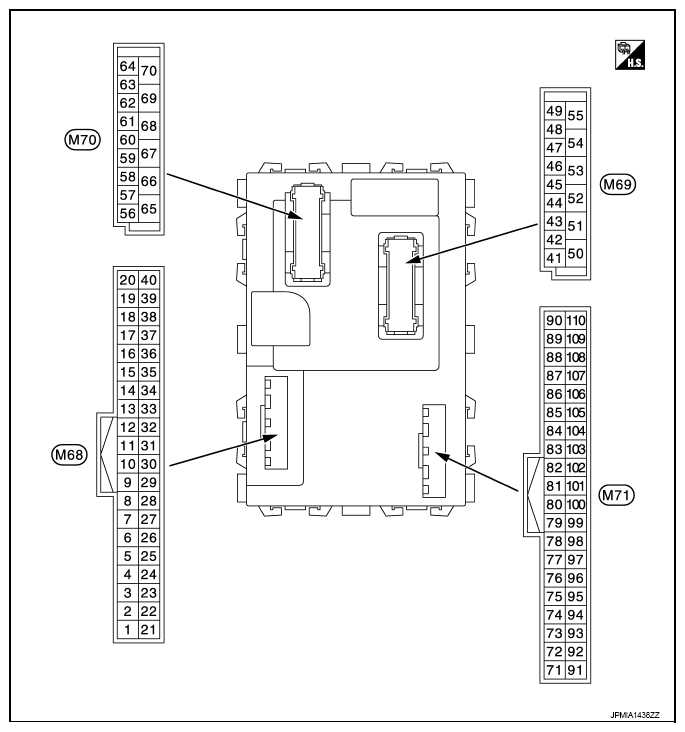

Fig 1: Identifying Body Control Module Terminal Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Connector color
M68, M70: Black
M69, M71: White
