Exploded View

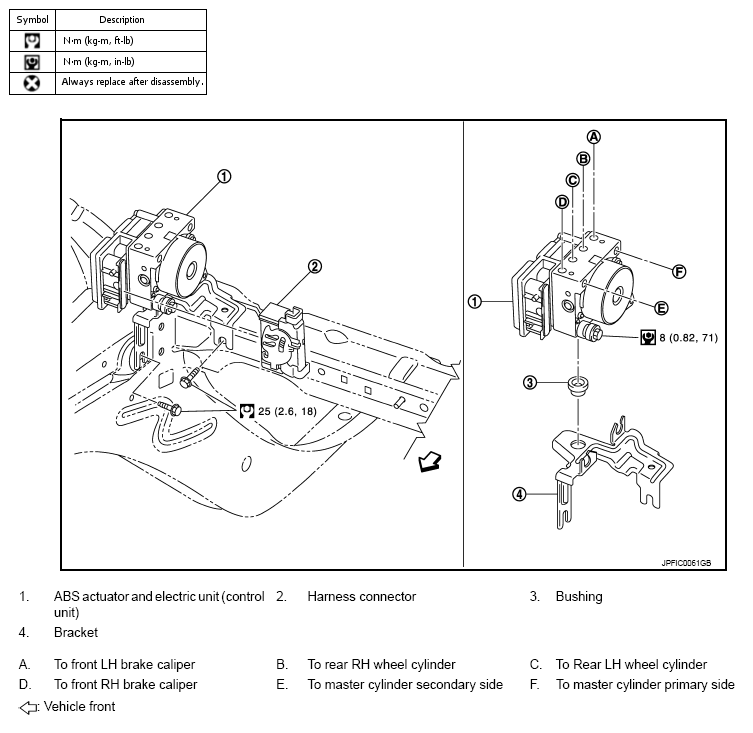

Fig 1: Exploded View Of ABS Actuator & Electric Unit With Torque Specifications (Control Unit)

G07107555

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
