Disassembly and Assembly: Notes

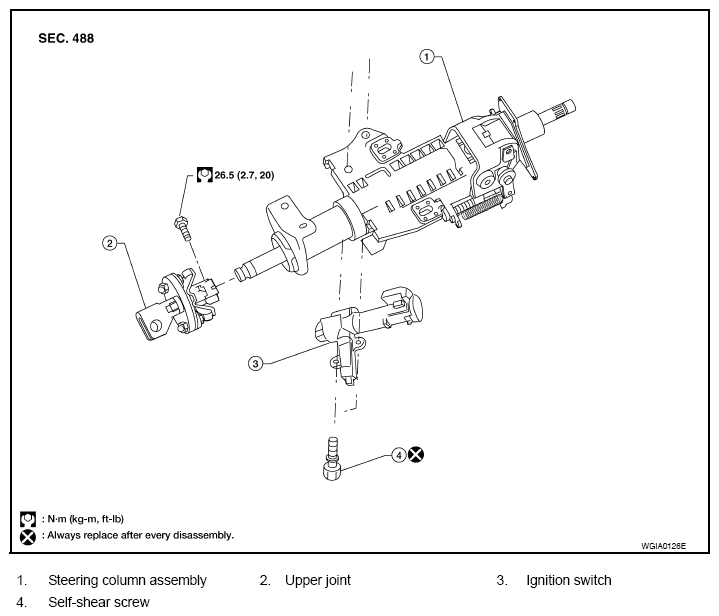

Fig 1: Exploded View Of Steering Column Disassembly & Assembly With Torque Specifications
G07120196Courtesy of NISSAN MOTOR CO., U.S.A.
