SRS Airbag Control System
›
System Description
›
Component Parts
›
Component Parts Location
Component Parts Location

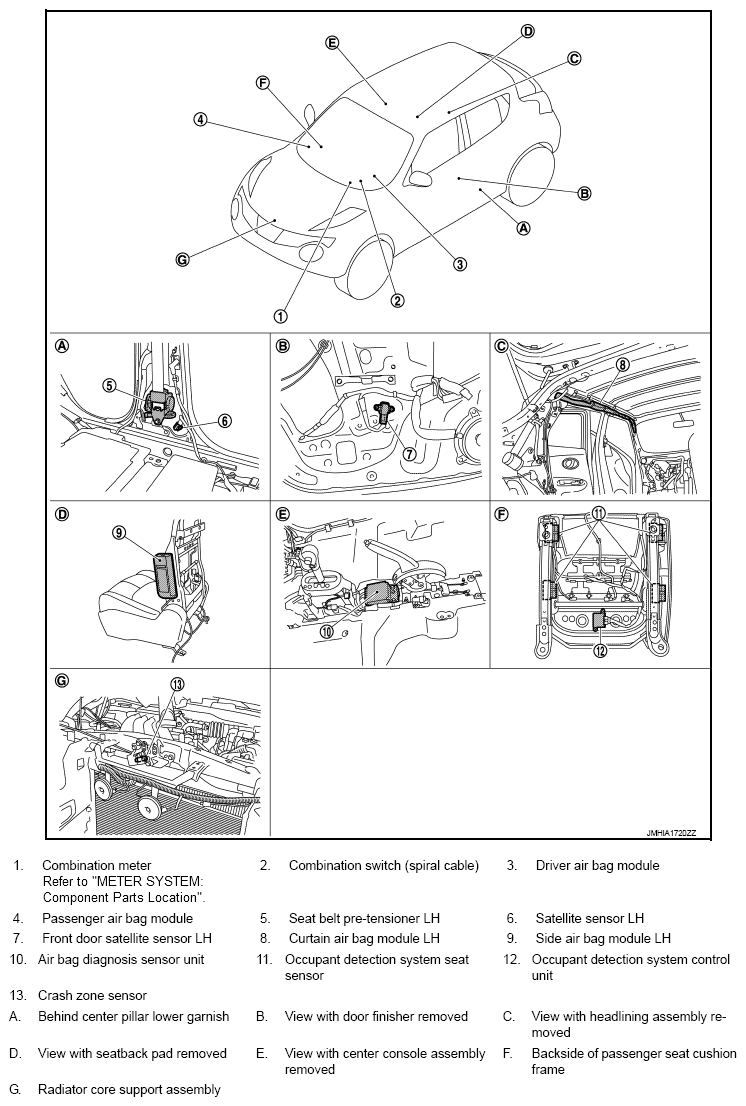

Fig 1: Identifying SRS Air Bag System Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
