Control Cable
›
Exploded View
›
AWD Models
AWD Models

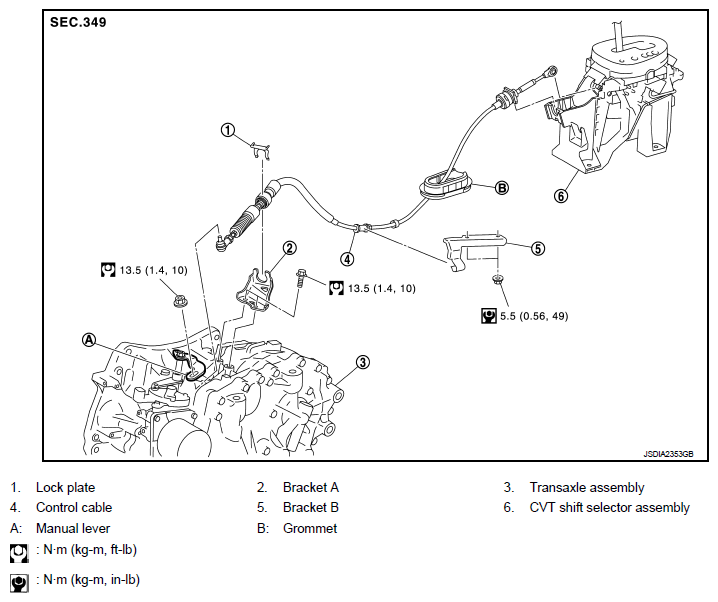

Fig 1: Exploded View Of Control Cable (AWD Models) With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
