Nissan-Datsun
›
2011
›
Juke S, FWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
CVT
›
Removal And Installation
›
Control Valve
›
Exploded View
›
Component Parts Location
Component Parts Location

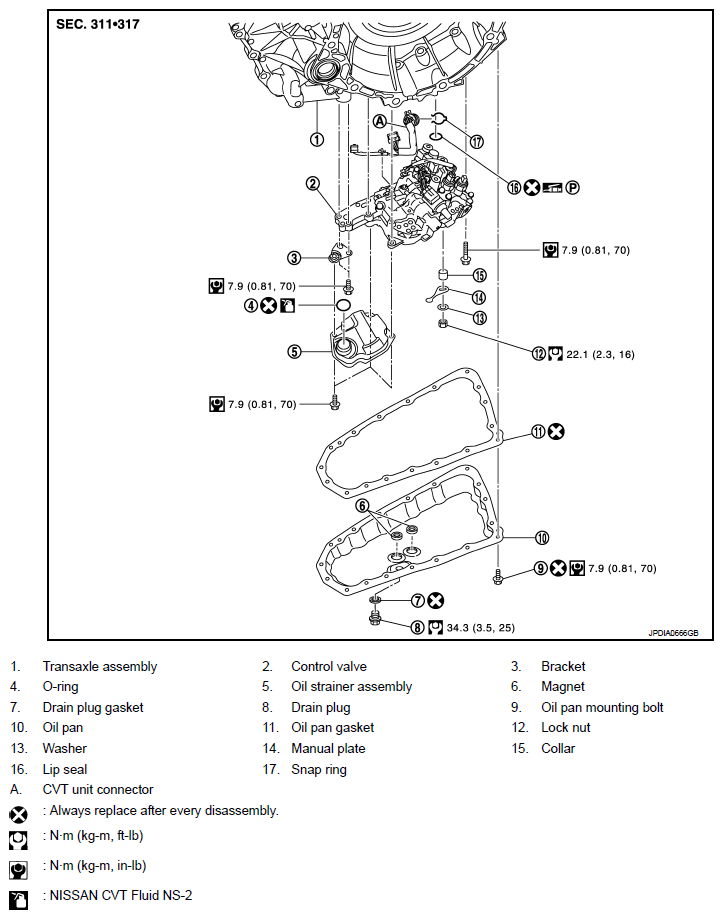

Fig 1: Exploded View Of Control Valve With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
