System Description
›
System
›
CVT Control System
›
CVT CONTROL SYSTEM : System Description
CVT CONTROL SYSTEM : System Description

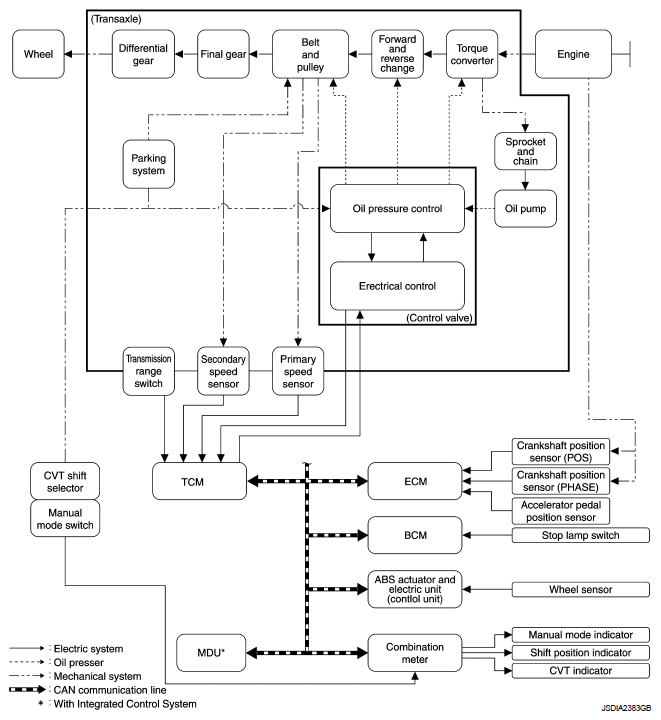

Fig 1: CVT Control System Schematic
