System Description
›
System
›
CVT Control System
›
CVT CONTROL SYSTEM : System Diagram
CVT CONTROL SYSTEM : System Diagram

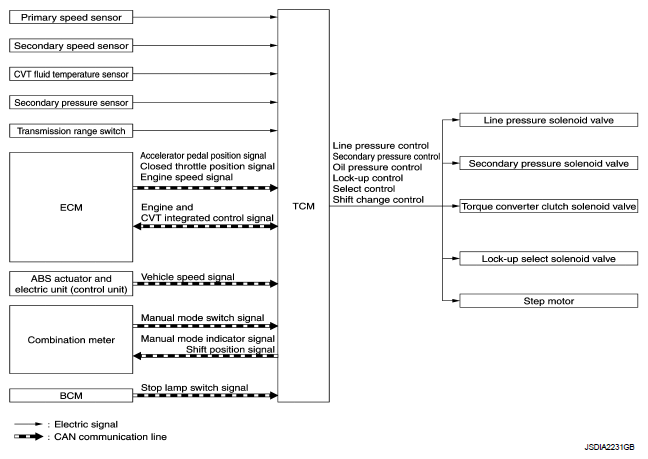

Fig 1: CVT Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
