System Description
›
System
›
Integrated Control System
›
INTEGRATED CONTROL SYSTEM : System Diagram
INTEGRATED CONTROL SYSTEM : System Diagram

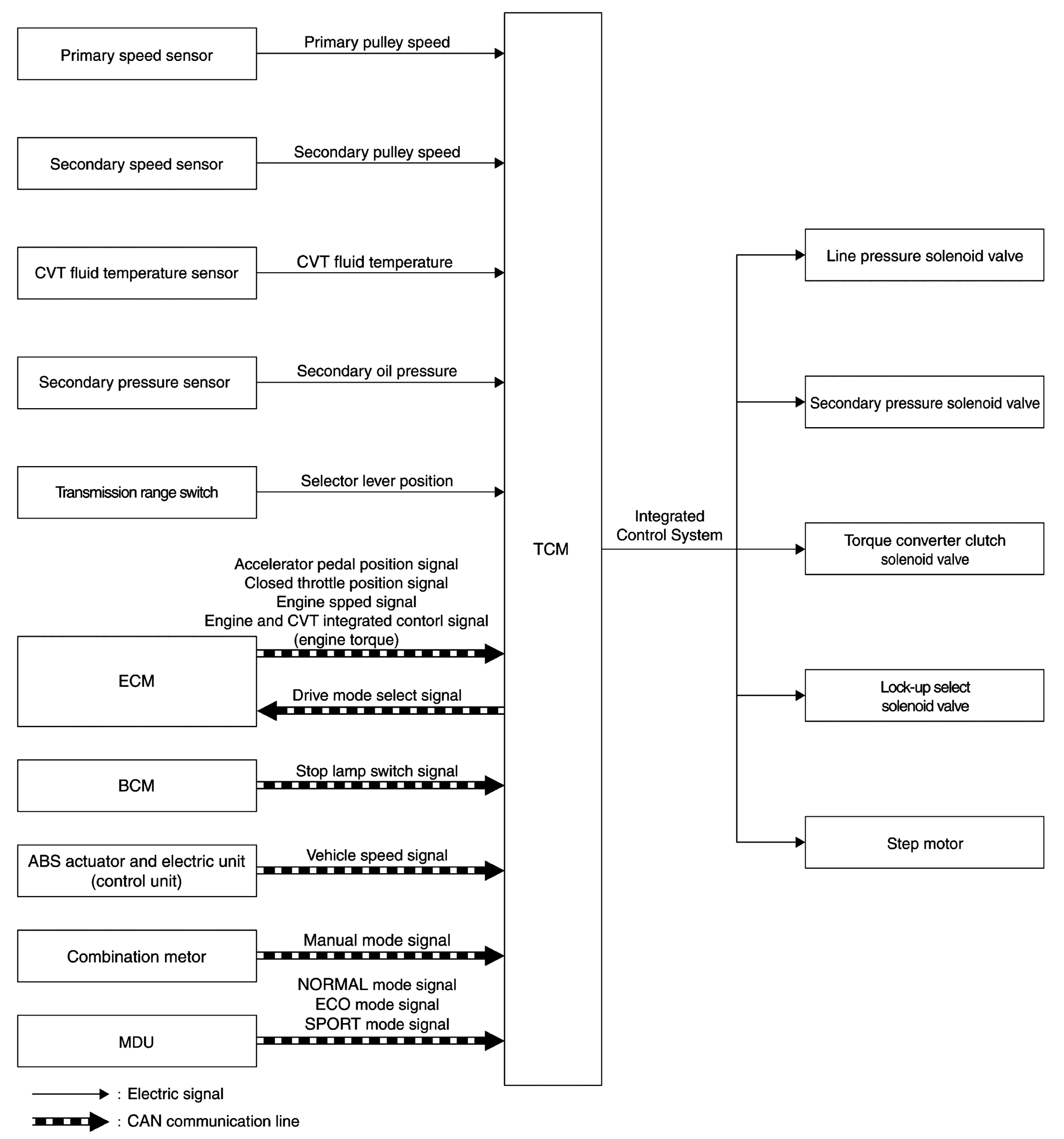

Fig 1: Integrated Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
