Alternator
›
Exploded View
›
Removal
Exploded View: Removal

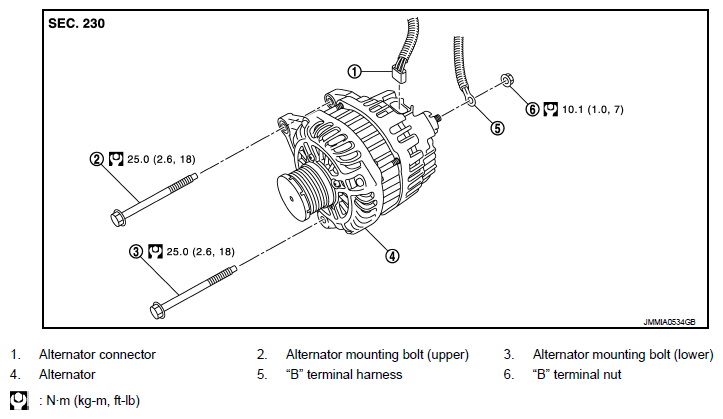

Fig 1: Exploded View Of Alternator With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
