RELAY CONTROL SYSTEM : System Diagram
RELAY CONTROL SYSTEM : System Diagram

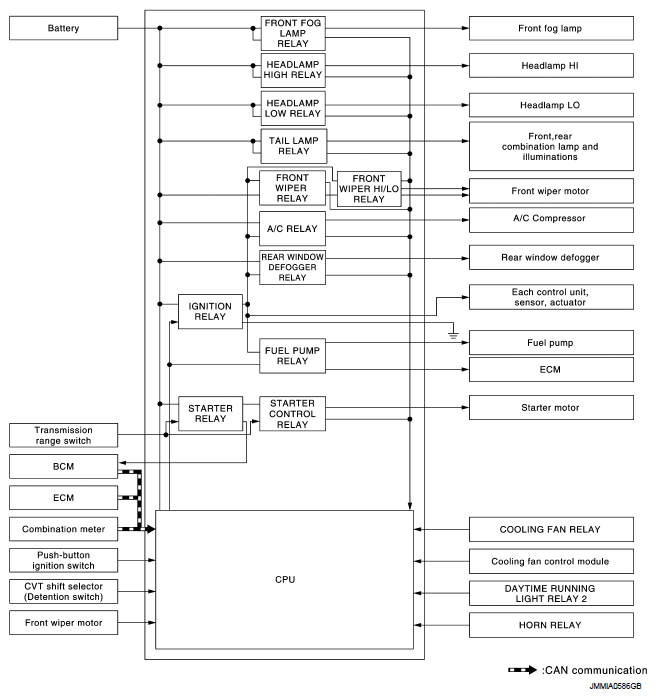

Fig 1: Relay Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
