Home
›
Nissan-Datsun
›
2011
›
Leaf SL
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System
›
Removal And Installation
›
Windshield Glass
›
Exploded View
Exploded View

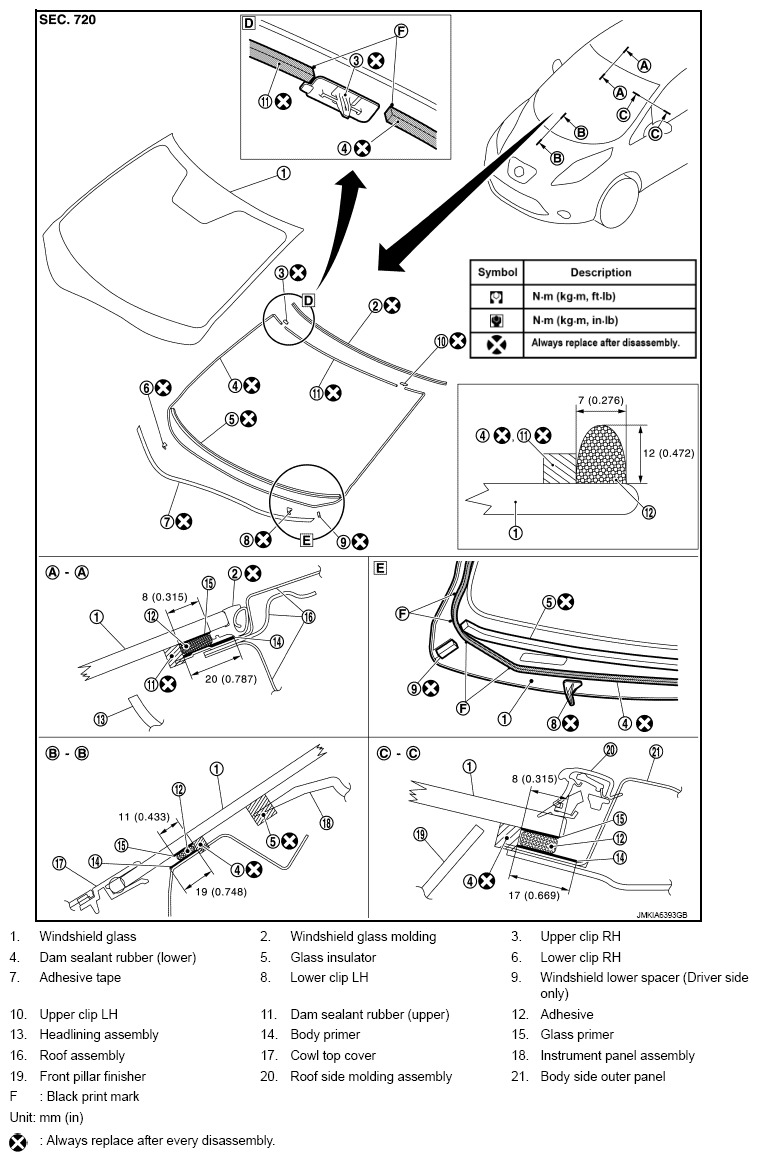

Fig 1: Exploded View Of Windshield Glass With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
