Rear Window Glass
›
Exploded View
Exploded View

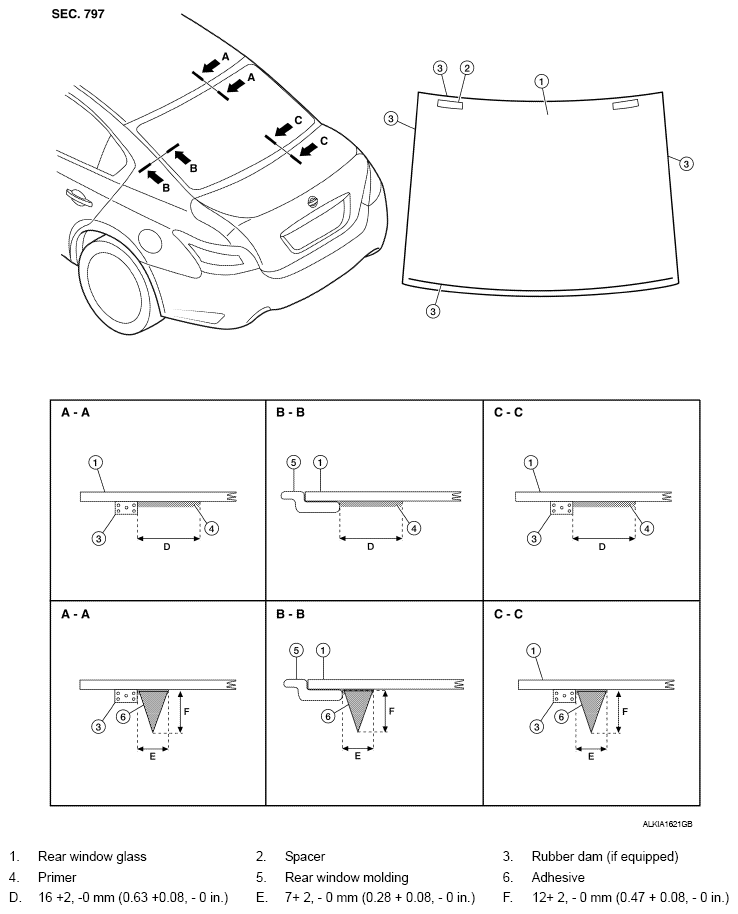

Fig 1: Exploded View Of Rear Window Glass With Installation Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
