Removal And Installation
›
Windshield Glass
›
Exploded View
Exploded View

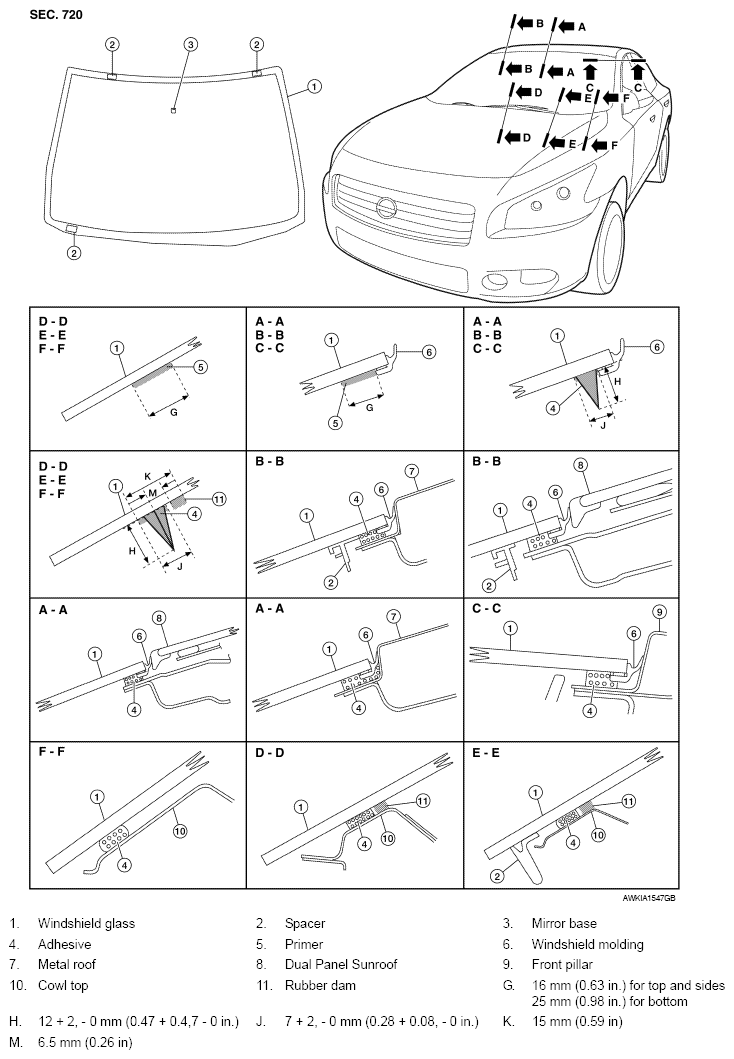

Fig 1: Exploded View Of Windshield Glass With Installation Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
