IGNITION TIMING : Special Repair Requirement

CHECK IGNITION TIMING

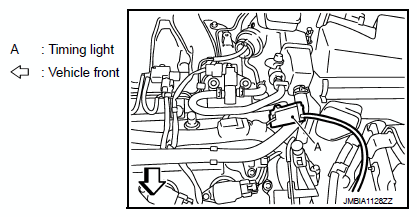

1. Attach timing light to loop wires as shown in figure.

  Fig 1: Identifying Timing Light To Loop Wires
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
  INSPECTION END

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN MOTOR CO., U.S.A.
