Power Steering Oil Pump
›
Exploded View
Exploded View

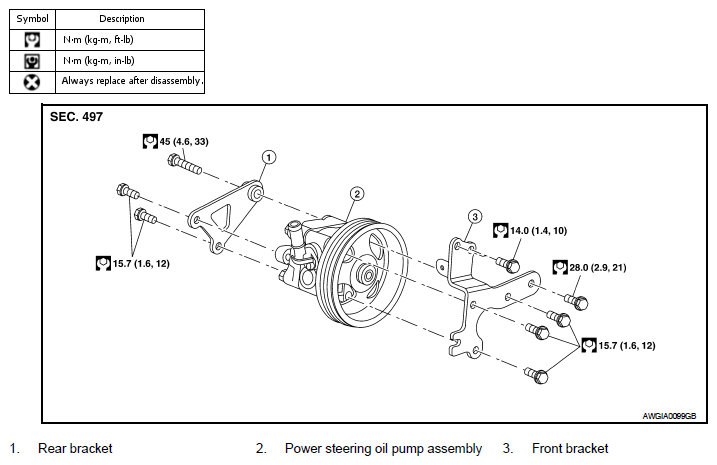

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
